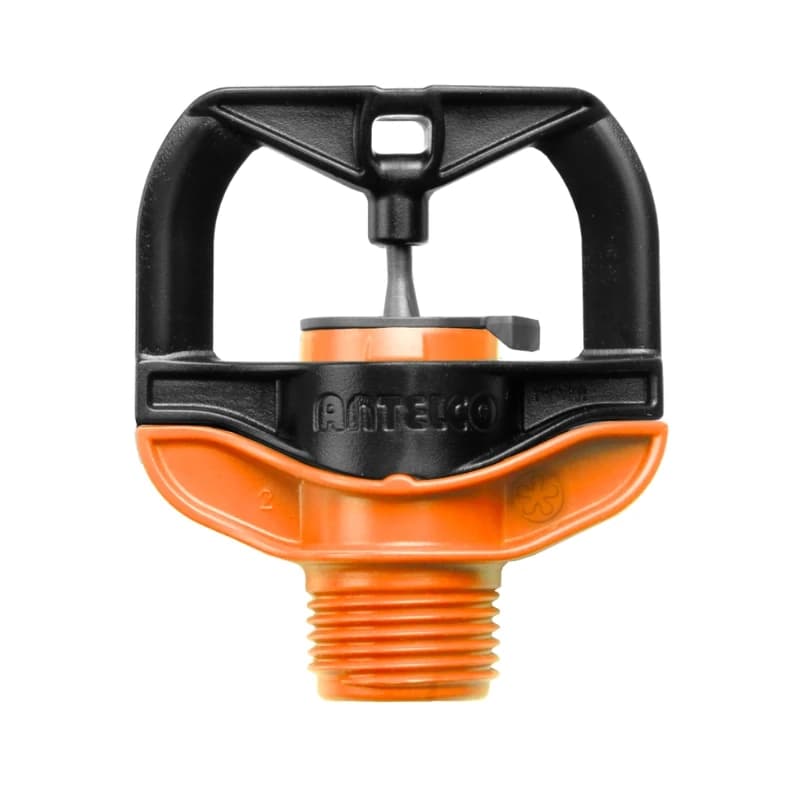

Pressure-Compensated Mini Sprinkler for Crop Irrigation

Deliver water around individual plants and small crop areas with this pressure-compensated mini sprinkler. Its compact head combines a rotating outlet with a compensation chamber, making it useful for greenhouse beds, nursery planting and agricultural irrigation layouts where several heads share a supply line. Pressure compensation helps manage changes in supply pressure within the intended operating range.

Choose the flow and connection for your zone

The listed working range is 1.5-4 bar, with flow options across 45-95 L/h and a stated spray radius of 1.8-3 m. These ranges describe available configurations; they do not mean every head delivers every flow rate or radius. Match the chosen head to the water demand and spacing of the crop, then confirm coverage with the complete zone operating.

Connection options include 6 mm female, 1/2 inch male and 4/7 barb fittings. Check the selected connection against your supply tube, riser or adapter before ordering. A threaded connection and a barbed tube connection need different mating parts, so connection type matters as much as the sprinkler's flow.

Set up for dependable watering

Flush the line before fitting the sprinkler and use filtration suited to the water source. Position the head with room for its moving parts and keep foliage clear of the spray. During startup, check leaks, rotation and the wetting pattern. Recheck the far end of the line while all heads run, and clean a head if its output becomes uneven. Tubing, stakes and installation fittings should be chosen separately to suit the layout.
