Fittings & Connectors

Irrigation fittings join, branch, reduce or close a water line. The selection spans drip connectors, hose fittings and irrigation pipe fittings, but parts that look alike may fit different outside diameters, wall types or thread standards.

Identify the material and measure the actual mating sizes before ordering. Compare the connector style, pressure rating and whether a clamp, gasket or punch is needed. Use the product variant and photo to verify both ends of a fitting; nominal pipe names alone may be insufficient.

Where and when to use it

Irrigation fittings connect a source, mainline, submain and crop laterals without changing their basic hydraulic job. A field might need larger irrigation pipe fittings near the pump and small takeoffs at every drip row. Prepare a simple pipe schedule before ordering: material, nominal and actual dimensions, pressure rating, thread standard and quantities at every branch. Fittings that look similar in a photo may seal in very different ways.

How it works

A fitting either joins, redirects, branches, adapts or closes a line. Compression parts seal around a correctly sized pipe; barbs grip compatible hose or tube; threaded joints require the matching thread form and sealing method. Each connection adds some pressure loss and creates a possible leak point, so use the fewest practical adapters and avoid forcing a near-match.

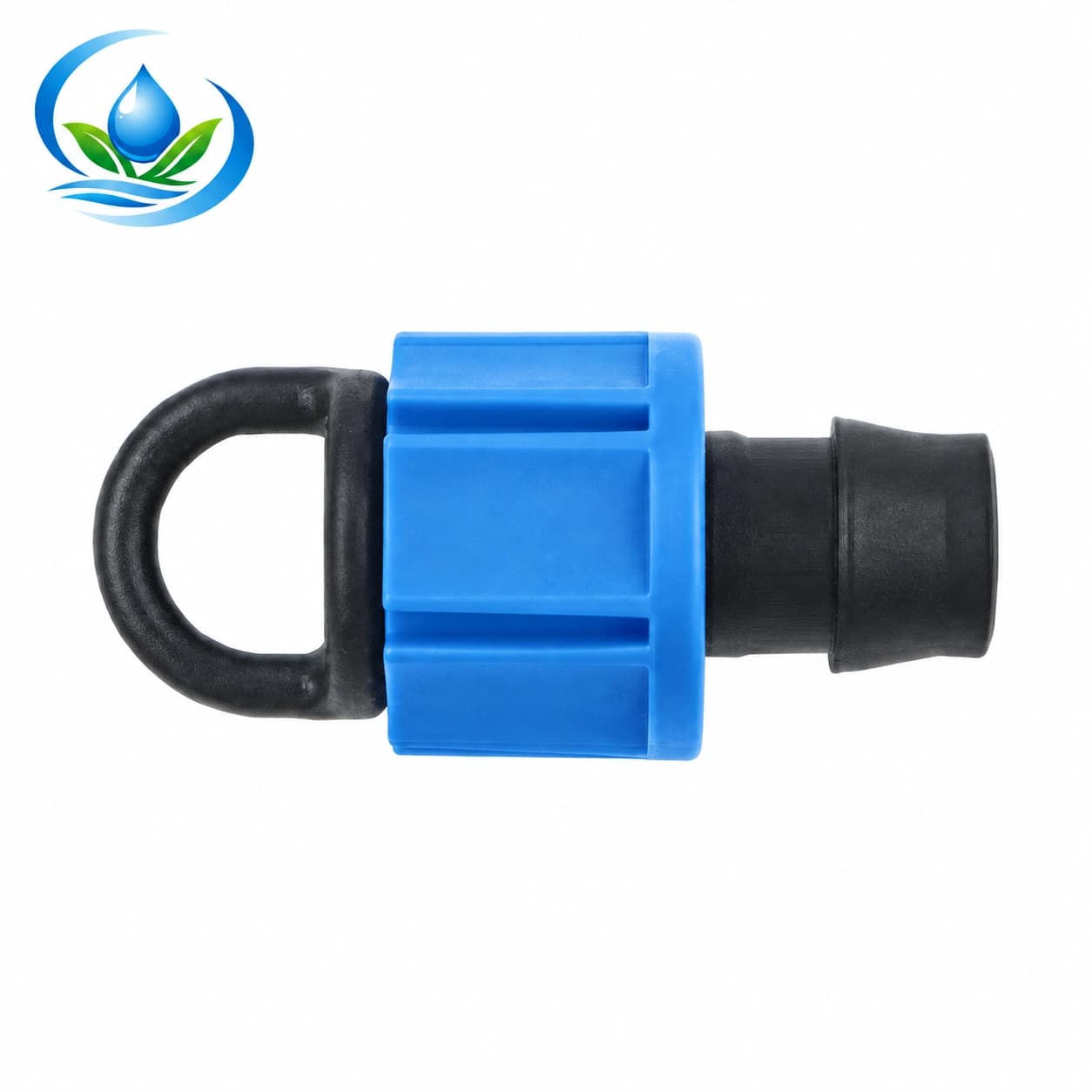

Drip irrigation fittings include barbed, compression and threaded connections with different sealing methods. Match the actual tubing outside diameter or thread standard to the selected fitting; a similar-looking adapter can leak or restrict flow.

How to plan and install it

1. Draw the route and count tees, elbows, reducers, takeoffs and end closures.
2. Check each line's actual inside and outside diameter plus material and pressure rating.
3. Cut pipe square, deburr where specified and assemble each connector to the maker's insertion depth or torque.
4. Flush debris before closing ends, pressurize one zone and inspect every joint for seepage.

Operation and maintenance

Inspect fittings after seasonal temperature changes and line movement. Replace cracked or distorted seals rather than overtightening a leaking joint. Keep spare repair couplers matched to the actual pipe dimensions. A leak at a fitting can be caused by a cut pipe end or unsupported load, so repair the underlying issue as well as the joint.

Common questions

Do you use Teflon tape on irrigation fittings?

Only where the fitting manufacturer's instructions call for thread sealant on a compatible threaded joint. Do not put tape on a barb, compression grip or gasket face; those seal by other mechanisms. Check the thread form and avoid over-tightening plastic parts.

Can I mix threaded and barbed irrigation connectors?

Only through a rated adapter with matching thread and barb dimensions. Support the connection and pressure-test it before regular use.

Technical reference: USDA NRCS, National Engineering Handbook: Microirrigation. Use the selected product manual and local requirements for final design.
