Electric Diaphragm Solenoid Valve for Irrigation Zones

Switch agricultural watering zones electrically

The diaphragm valve combines a pipeline body with an electrically operated pilot assembly. Connect it to a compatible controller to open and close the irrigation zone.

Specify the complete connection

Choose the listed threaded or flanged size, then confirm thread standard or flange pattern, working pressure and coil requirements. Allow service access around the pilot and cover. Flush new pipework and test commanded opening and closing before normal operation.

Plan access around the pilot assembly

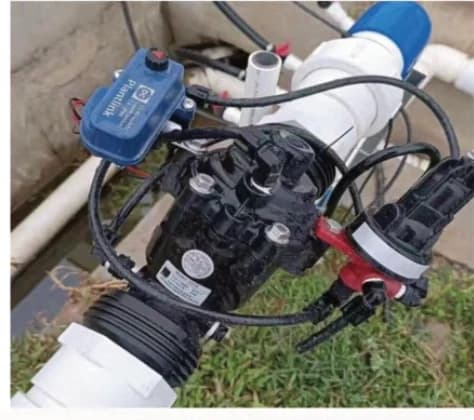

The photograph shows an angled valve body with the electrical pilot mounted above the main water passage. Plan the pipe layout so the pilot, wiring and cover remain reachable after surrounding equipment is installed. Identify the exact inlet and outlet arrangement of the selected version before ordering pipe fittings; a photograph of one size does not establish the end connection of every option.

Check operation as part of the complete zone

Support the pipeline so its weight does not load the valve connections, and route electrical leads away from joints that need regular service. Commission the valve with the controller that will actually operate it, observing both the opening response and closure of the downstream zone. If behavior changes later, isolate water and electrical power before inspecting the pilot or diaphragm. Keep the surrounding work area clear so routine maintenance remains practical.
