Clamp-Mounted Flat Fan Nozzle for Greenhouse Spray Lines

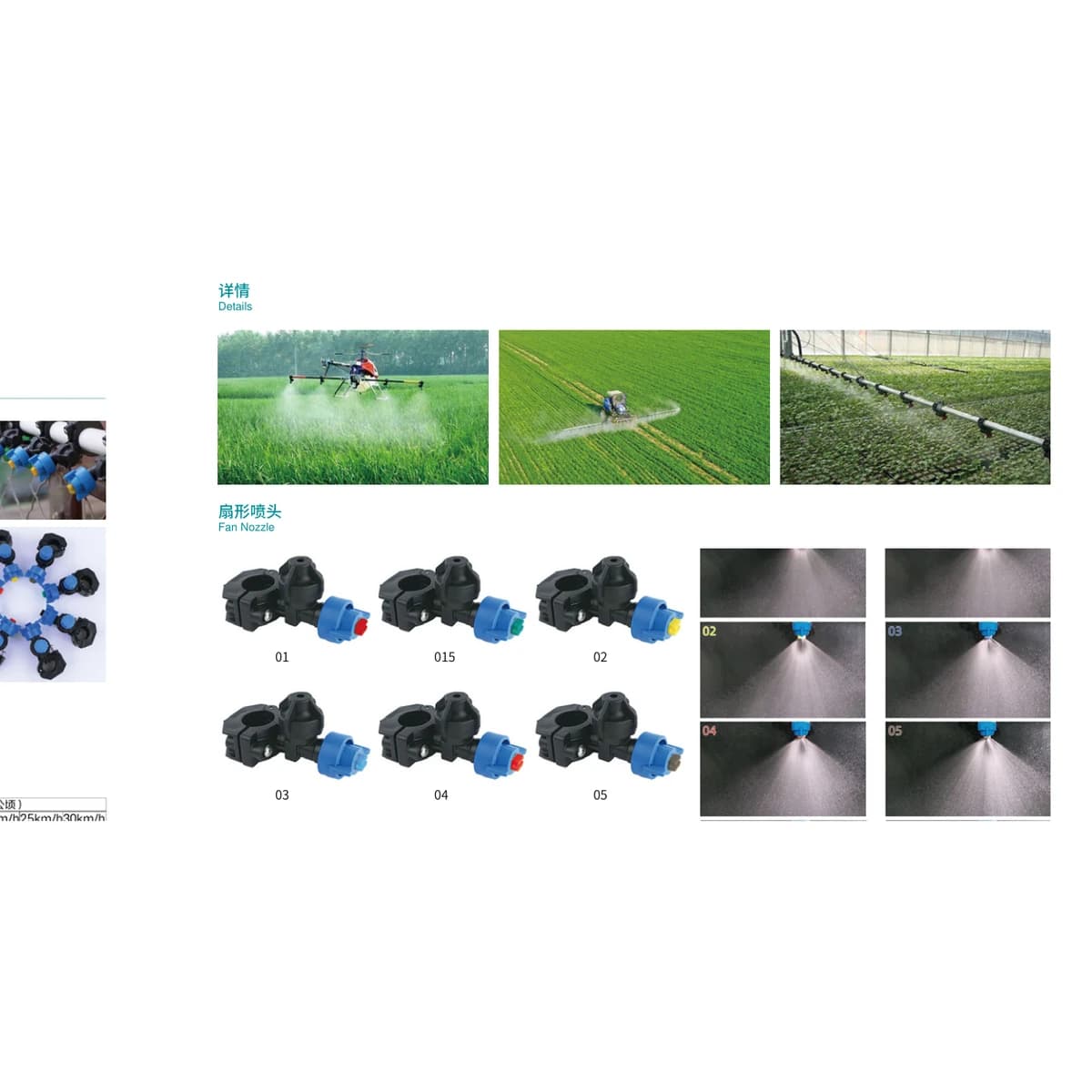

Build a focused spray line for greenhouse beds, crop rows or a spray boom with this clamp-mounted flat fan nozzle. The pictured assembly combines a pipe clamp, nozzle body and colored tip holder rather than showing a loose replacement tip. Its flat spray pattern suits applications where a defined strip of coverage is more useful than a circular sprinkler pattern.

Match the nozzle tip to the job

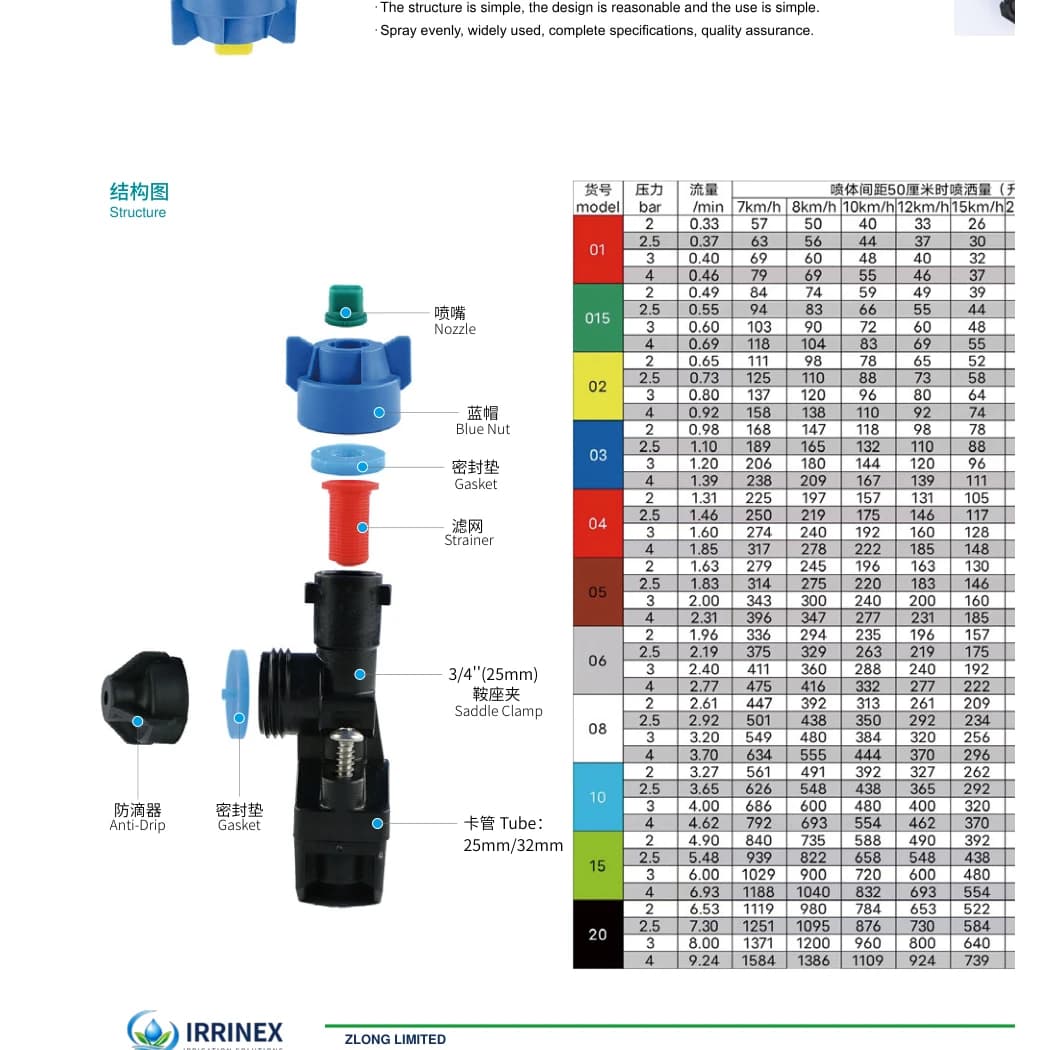

The listed range is 0.33-9.24 L/min at 2-4 bar across the available tip configurations. Flow depends on the selected aperture and pressure, so use the individual tip specification when calculating zone demand. Adding multiple nozzles increases total demand; check that the pump and supply line can maintain operating pressure with the complete line running.

Confirm the pipe clamp diameter and the tip's fit before ordering or replacing a nozzle. The holder, seal and nozzle insert must work together. A tip that looks similar can have a different seat or flow rating, and color alone does not establish compatibility. Set nozzle spacing and mounting height from the actual spray pattern, checking overlap across the planted strip.

Install and check the spray line

Flush the pipe before installation and use suitable filtration to protect the small outlet. Secure the assembly on a compatible pipe without forcing the clamp. Run clean water through the completed line and inspect for leaks, misaligned fans and uneven output. If a tip blocks, clean it gently rather than enlarging the opening with a sharp tool. Choose mounting pipe and any additional fittings to suit your installation.
