Water-Wheel Spray Nozzle with 25 or 32 mm Pipe Clamp

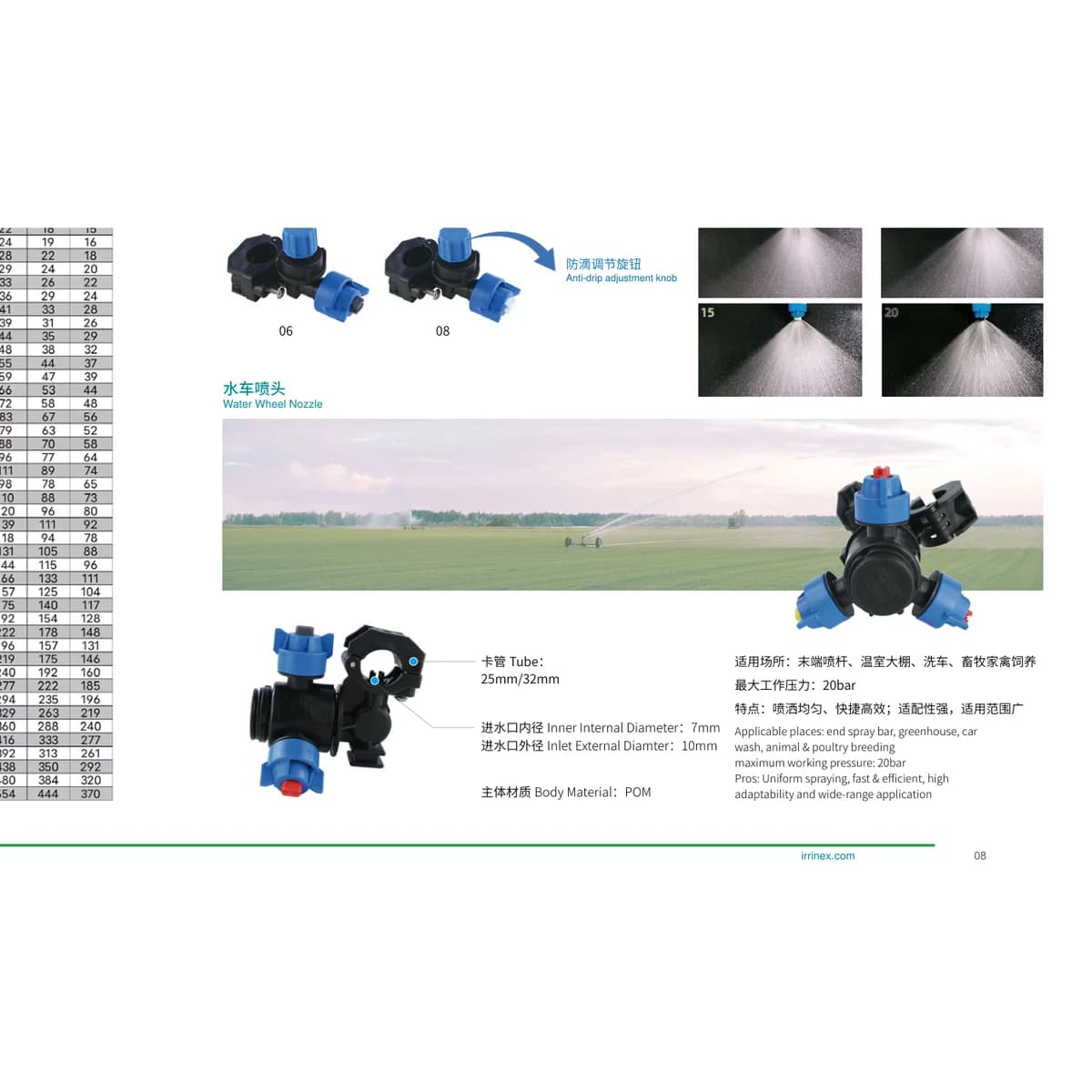

Configure a greenhouse or agricultural spray line with this water-wheel nozzle assembly. The pictured unit combines a pipe saddle clamp with a compact rotating turret and multiple nozzle holders. This arrangement keeps nozzle positions together on one body, helping you organize a spray setup where different tip choices may be needed for different tasks.

Check the pipe and inlet dimensions

The listed clamp sizes are 25 and 32 mm. Select the version that matches the outside diameter of the mounting pipe rather than assuming one clamp fits both sizes. The inlet dimensions are listed as 7 mm inside diameter and 10 mm outside diameter. Check these against the supply arrangement and any required sealing components before installing the body.

The body material is POM. The recorded maximum working pressure is 20 bar, but this is a component limit rather than a recommended setting for every tip. Set operating pressure from the chosen nozzle's own flow and spray requirements and from the lowest-rated component in the completed line. Do not infer a spray rate from the number or color of the nozzle holders.

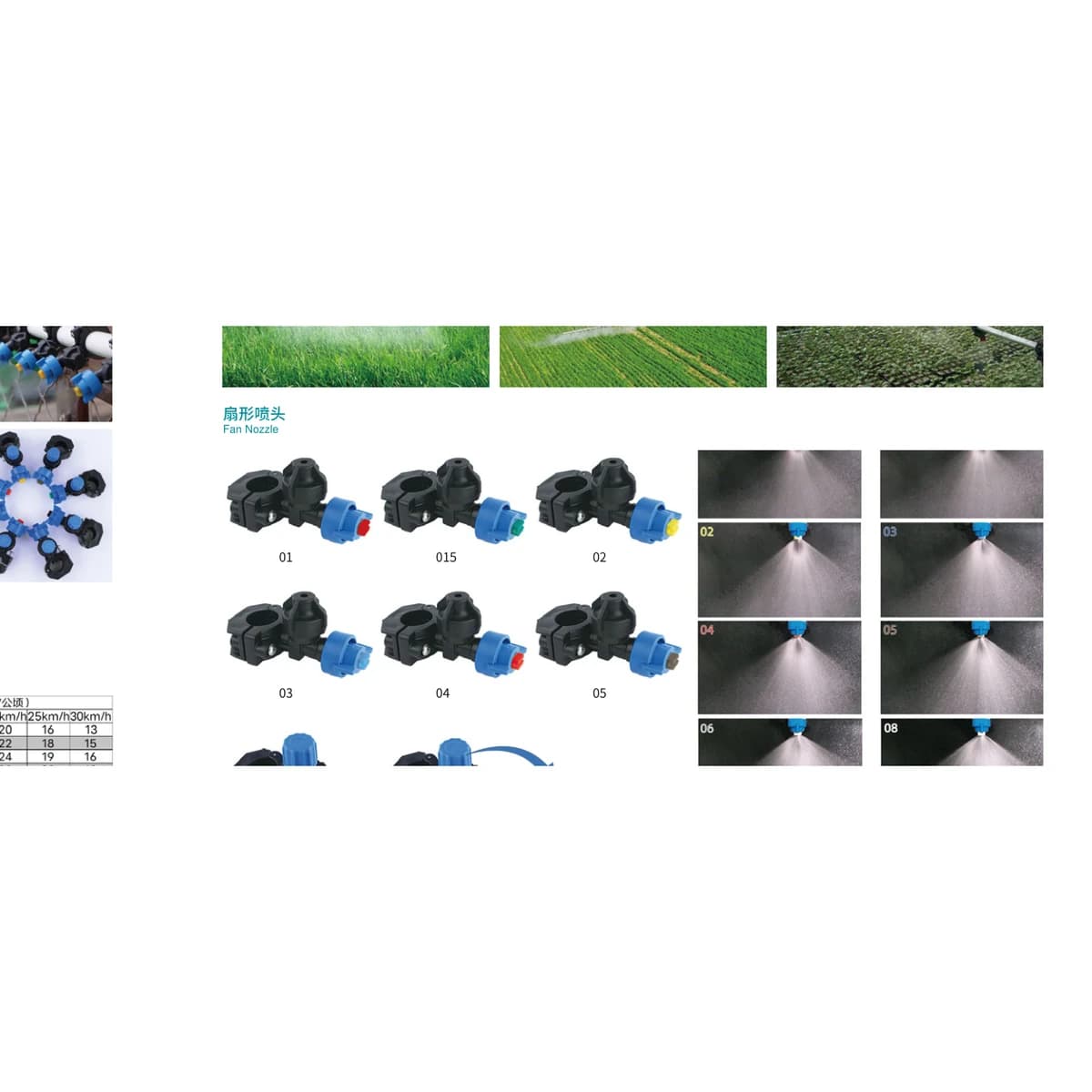

Confirm the selected spray pattern

Flush the line and fit appropriate filtration before attaching the assembly. Seat the clamp securely on the correct pipe and check that the chosen nozzle position is fully engaged. Run the system with clean water to inspect seals and observe coverage at the intended mounting height. Plan spacing from that observed pattern and the selected tip data. Check the holders for debris during maintenance, and confirm replacement tip and seal compatibility before changing components.
