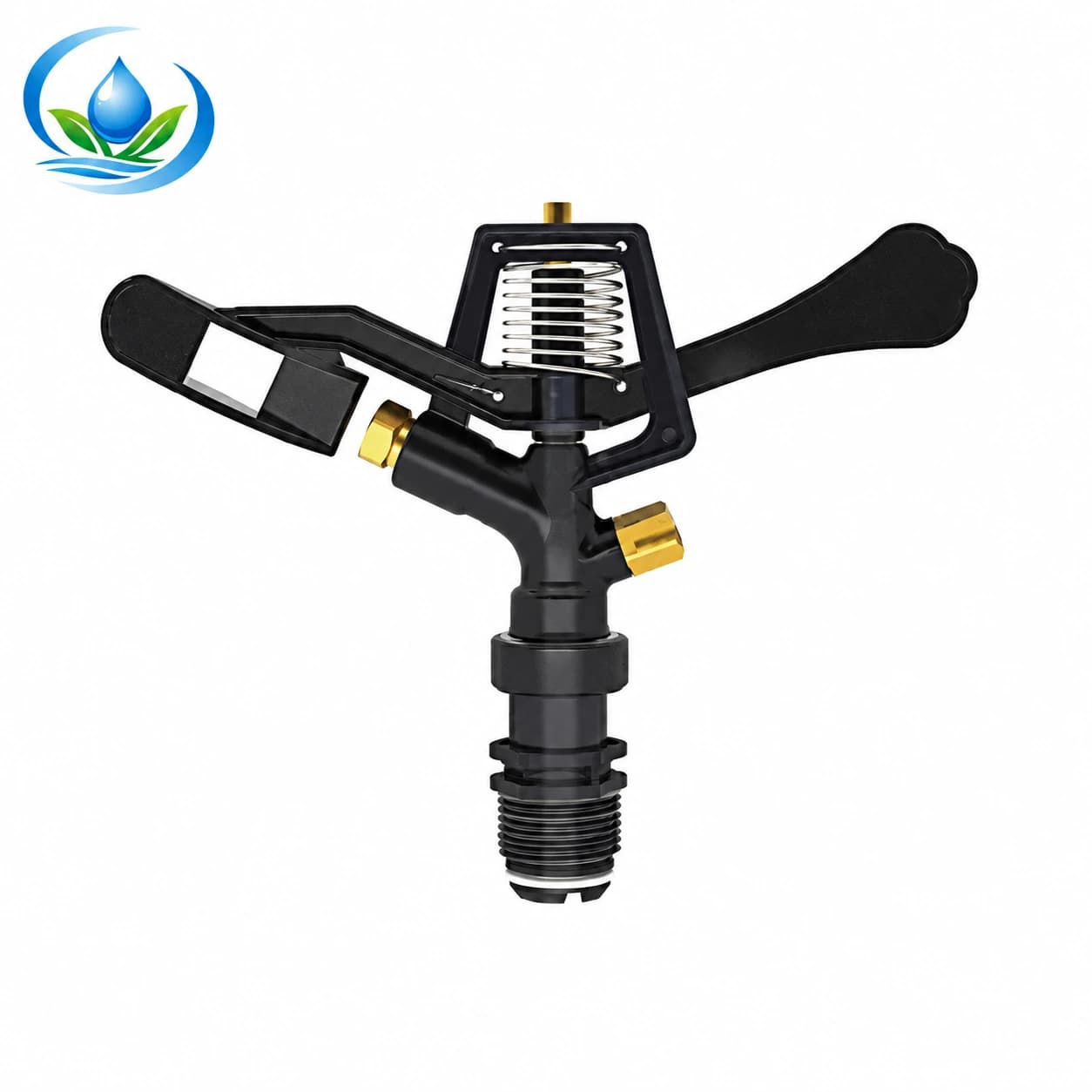

Black Plastic Impact Sprinkler for Field Irrigation

Water crop or garden zones with a black plastic impact sprinkler. Check its 4.5 × 2.1 mm nozzles, 13.1-15 m listed radius and operating pressure against your layout.

Key details

• Nozzle Diameter: 4.5×2.1 mm
• Working Pressure: 2.0-3.0 Bar
• Spraying Radius: 13.1-15 m
• Flow Rate: 23-28 L/min

Plan the watering zone

Confirm available pressure and flow at the sprinkler, including losses through the pipework. Set spacing for overlap between spray patterns and allow for wind. Flush the line before regular use and check the selected inlet or nozzle against your fittings.

Choose spacing from the watering pattern

The listed radius measures reach from the sprinkler. Use overlapping spray patterns when planning spacing, and check the result in your actual field or garden. Wind, mounting height and available pressure can change where the water lands. A single radius figure does not guarantee even coverage across a whole zone.

Check the supply before installation

Add the flow demand of the sprinklers that will run at the same time. Measure pressure at the operating head where possible, because a pump reading does not show losses through long pipe runs, fittings or changes in elevation. Match the connection to the support and pipework before ordering.

Keep delivery consistent

Position the head upright and clear of foliage, flush the supply line, then run a short watering test. Watch for interrupted rotation, blocked nozzles and leaking joints. Recheck the pattern after changing the layout or cleaning the sprinkler so that each part of the planted area receives the intended coverage.
