Click to zoom1 / 23/4-Inch Male-Thread Impact Sprinkler
SKU: IRRINEX-S24
A spring-driven metal impact head provides rotating watering over field plots and landscape planting.
$18.38
USD · per selected optionItems subtotal: $18.38 · Shipping calculated at checkout.
About this item

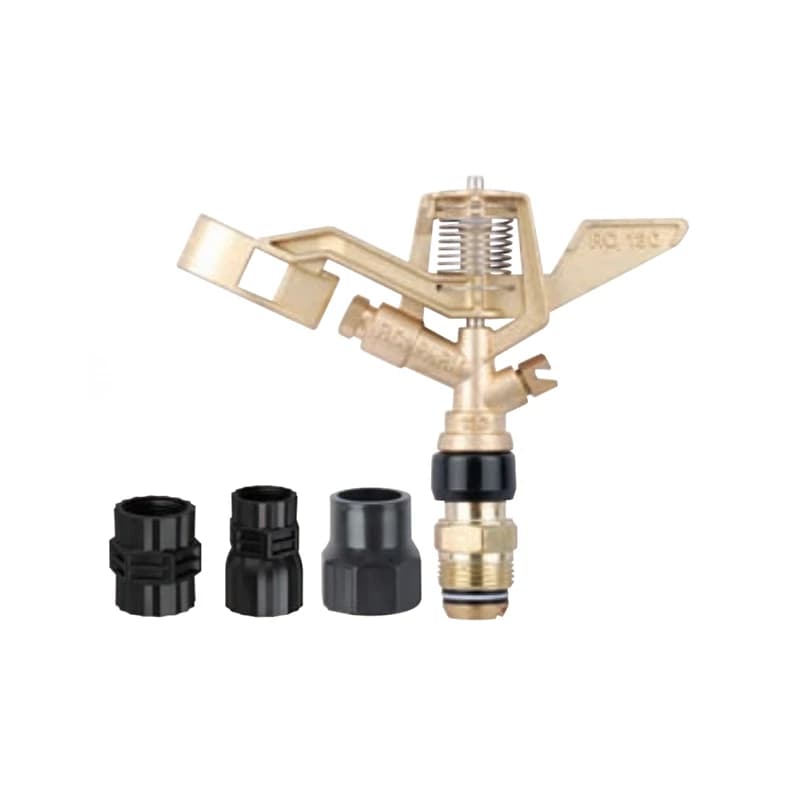

3/4-Inch Male-Thread Impact Sprinkler
A spring-driven metal impact head provides rotating watering over field plots and landscape planting. The male inlet screws into a compatible female-thread riser connection.
Choose the connection and watering setting
The inlet is 3/4-inch male thread. Check the thread standard and riser support before installation. Match the nozzle and available pressure to the intended irrigation zone.
Set up a working irrigation zone
Measure pressure while the zone is running, flush debris from the supply line and use filtration suited to the outlet. Arrange heads for overlapping coverage where the whole bed needs watering. Observe the soil or growing medium after a watering cycle and adjust run time to avoid runoff.
Keep the outlet working consistently
Inspect the outlet for debris and check connections for leaks. Clean with water and a soft brush so the opening keeps its original shape. Recheck the pattern after moving the head or changing the number of outlets on the zone.
- A spring-driven metal impact head provides rotating watering over field plots and landscape planting
- The inlet is 3/4-inch male thread
- Check pressure with the irrigation zone running
- Flush the supply line and inspect outlets regularly
Applications
- Agriculture
- Nurseries
- Landscaping
Technical Specifications
| Parameter | Value |
|---|---|
| Nozzle Diameter | 5.0×2.5mm |
| Working Pressure | 0.5-4.0Bar |
| Spraying Radius | 3.0-16.5m |
| Flow Rate | 6.8-32.4L/min |
| Inlet | 3/4inch male thread |
