Y Screen Filter for Irrigation, 3/4–2 Inch

Protect irrigation emitters before suspended sand and grit reach the distribution lines. This Y screen-filter family uses a removable mesh cartridge for regular cleaning. Choose the connection and body size for your irrigation supply line.

See the serviceable filter construction

Remove and rinse the screen

The separate cartridge view shows the mesh inside its supporting cage. Shut off and relieve pressure before opening the threaded filter housing. Lift out the element, rinse away collected sediment and reseat it carefully before restarting the system. Leave enough clearance around the housing to make this routine service practical.

Select the connection for your line

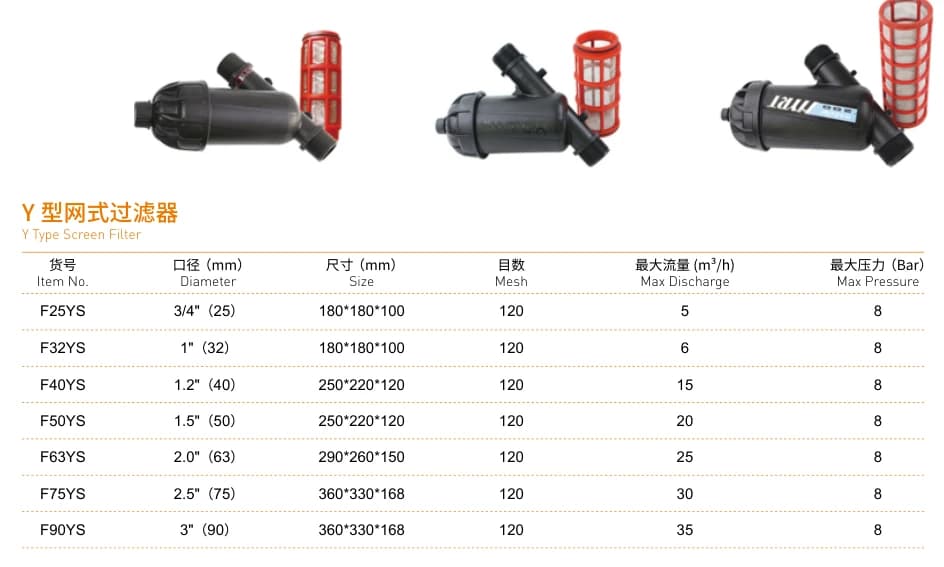

Choose 3/4 inch for a listed maximum flow of 5 m³/h, 1 inch for 6 m³/h, 1½ inches for 20 m³/h or 2 inches for 25 m³/h. All four options list 120-mesh filtration and an 8-bar maximum pressure. The service image above shows the compact body; the 1½- and 2-inch options use the larger screen-filter body shown in their option image. Actual operating flow depends on the pump, water quality and pressure loss. Confirm the thread standard, pipe size and service clearance before ordering.

Install the filter upstream of the drip zone, support the adjoining pipe so it does not strain the threaded ends, and check for leaks after the first run. Inspect and clean the screen more often when the source water carries visible sediment. Sold as one filter assembly; pipe adapters and gauges are separate.
