Venturi Fertilizer Injector with Suction Control Valve
Control fertilizer intake with a Venturi injector and suction valve. Check the water connections, pressure difference and required accessories.
$5.93
Click to zoom1 / 6Venturi Fertilizer Injector with Suction Tube
SKU: FRT-VEN
Introduce dissolved nutrients from a stock tank using Venturi suction. Match the connection size and test injection at the available pressure difference.
- Material
- PP, PVC
- Size Range
- 1" (32 mm) / 1-1/2" (50 mm) / 2" (63 mm)
- Pressure
- 8 bar
- Standards
- ISO
$18.16
USD · per selected optionItems subtotal: $18.16 · Shipping calculated at checkout.
About this item
Feed from a separate nutrient container

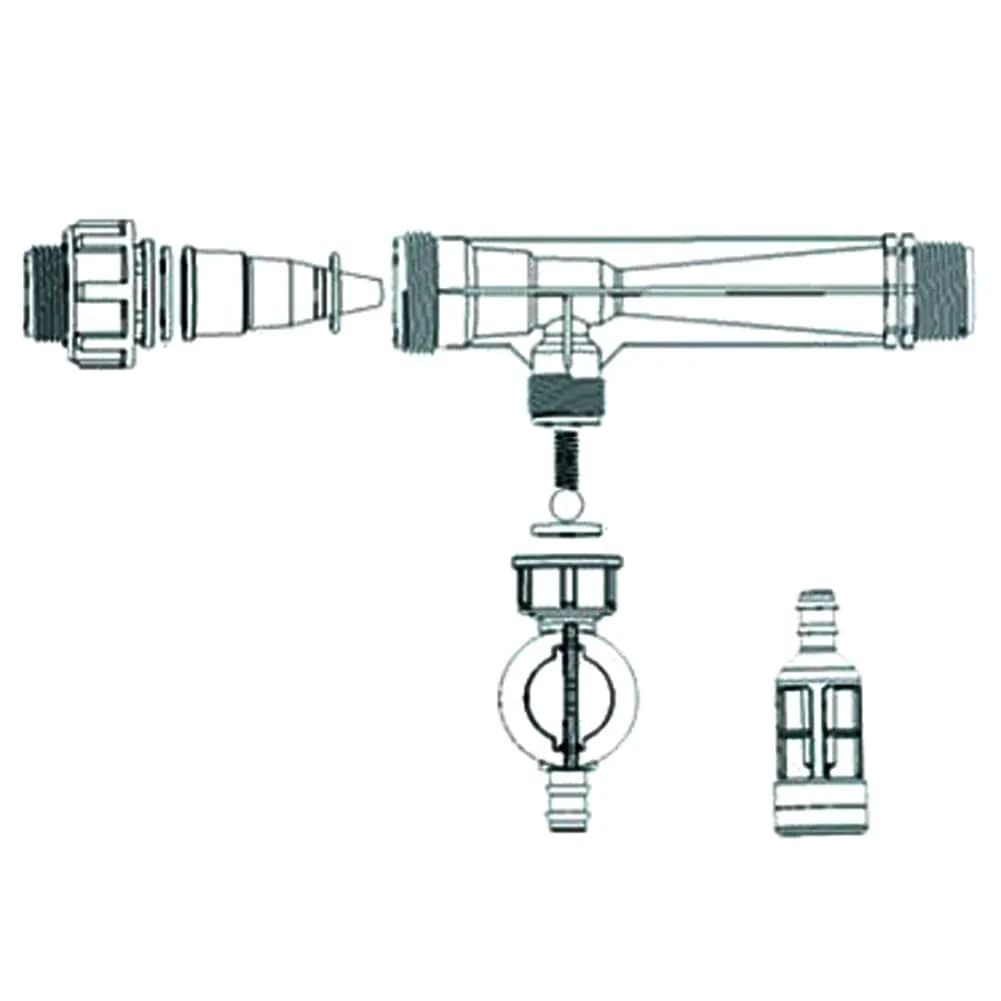

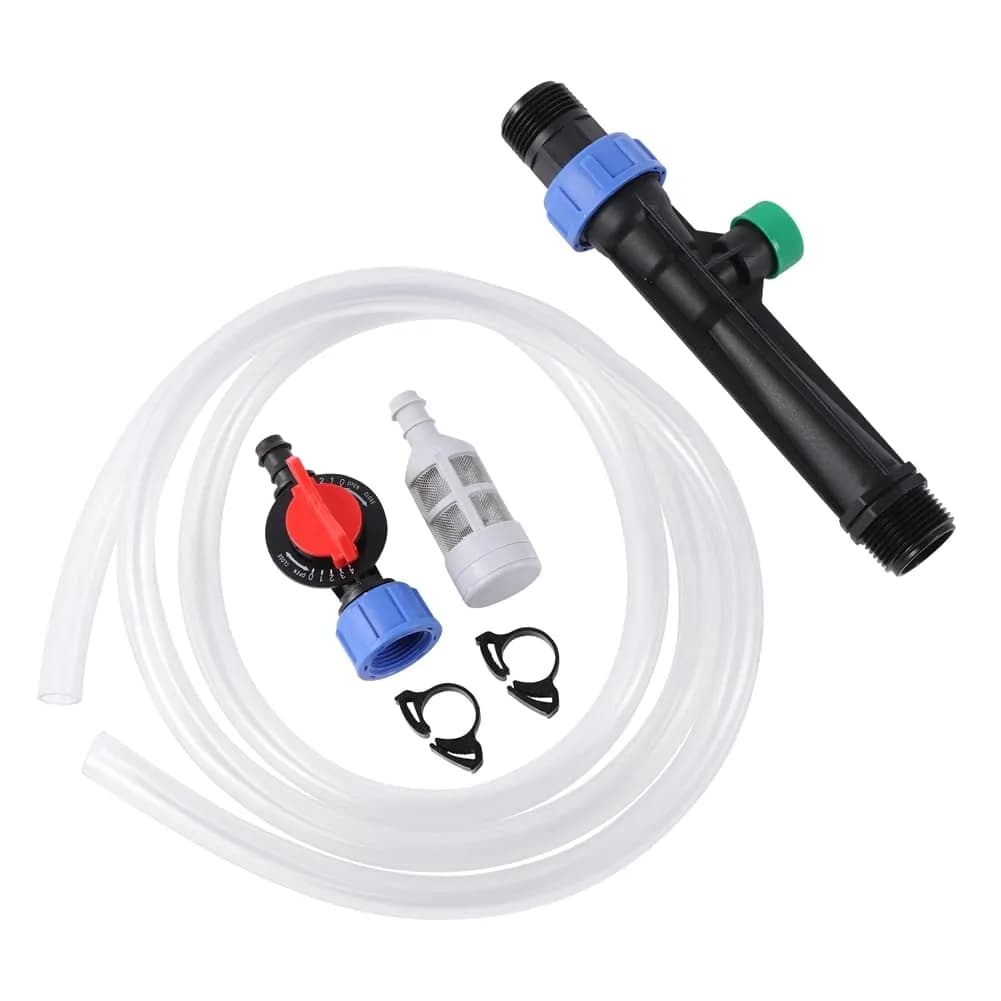

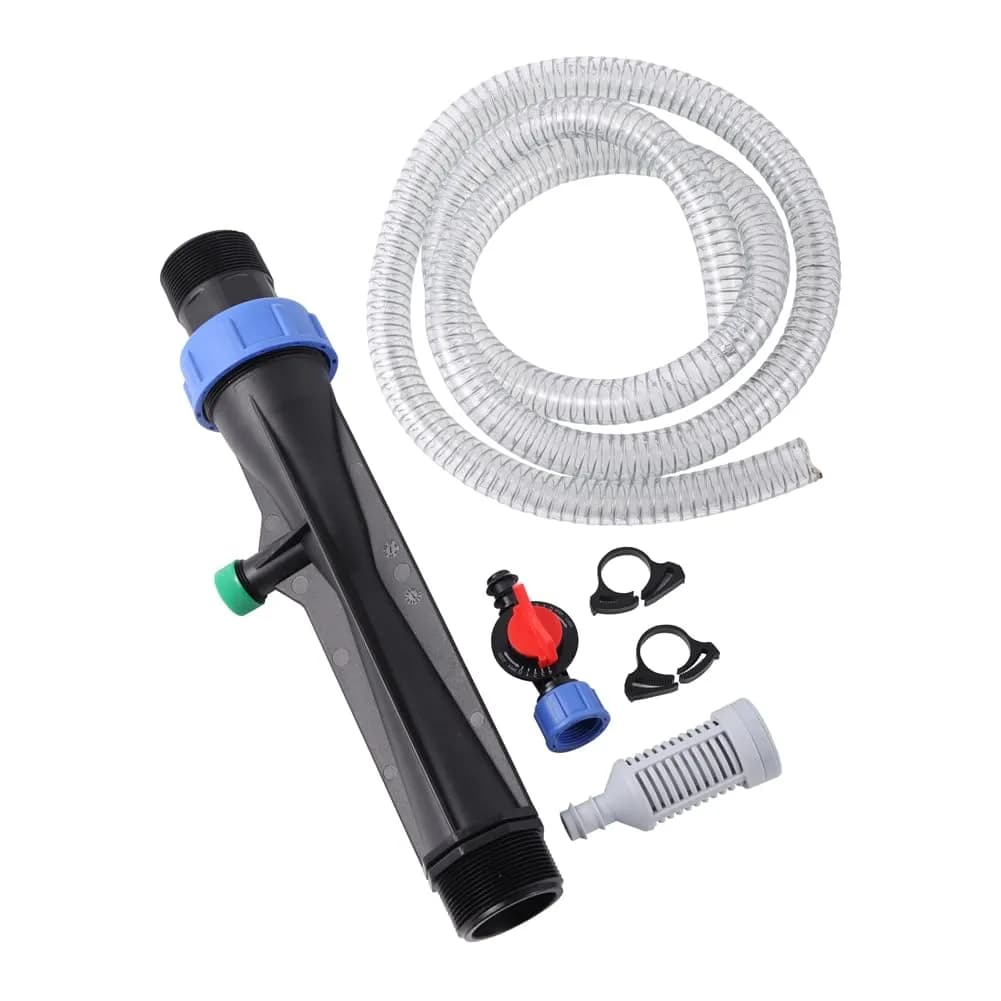

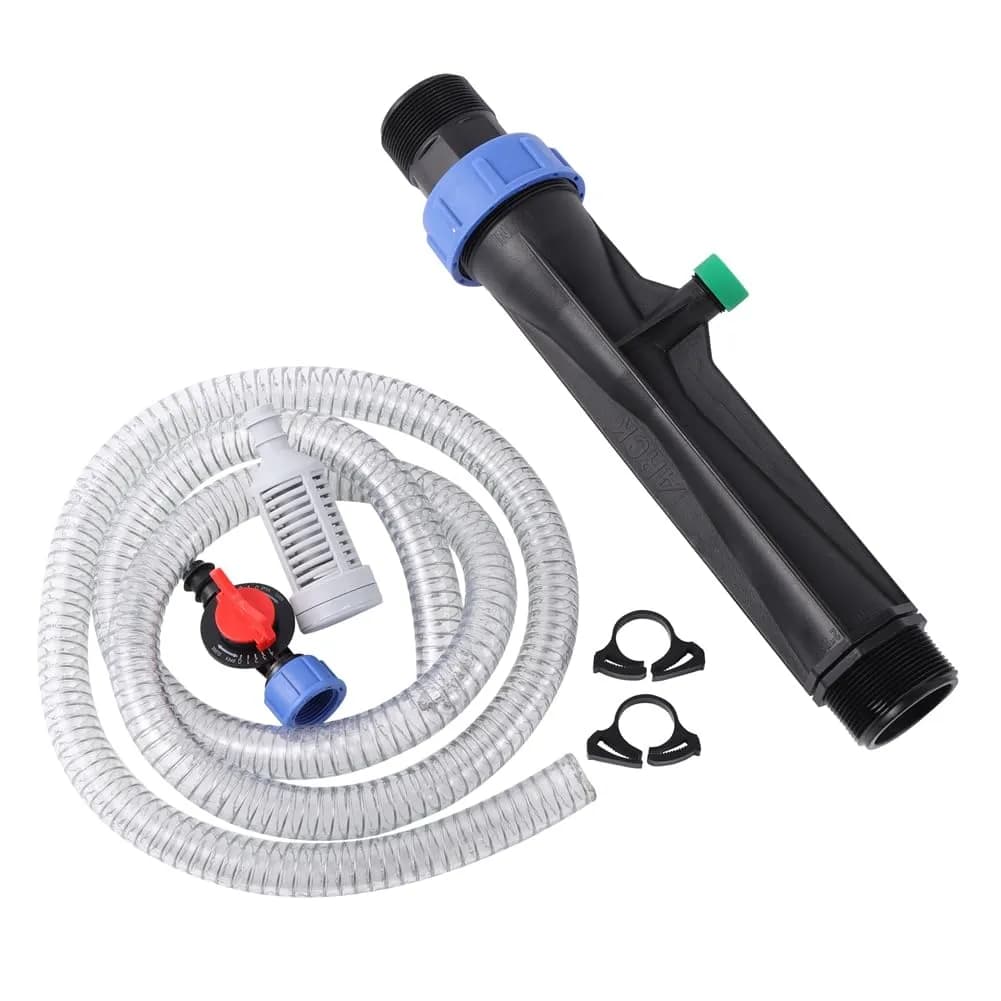

Water moving through a Venturi creates suction that draws prepared solution from a stock tank. The pictured assembly includes a clear suction tube and intake fittings. Fully dissolve compatible nutrients before feeding.
Confirm the bypass pressure difference
Suction depends on pressure difference across the injector. Select the connection size and test drawdown under actual irrigation flow before calculating dosage. Keep the intake submerged, provide suitable backflow protection and flush with clean water after feeding.
- Feed from a separate nutrient container
- Confirm the bypass pressure difference
- Confirm connection fit before installation
Applications
- Fertigation
- Chemical injection
- Water treatment
Technical Specifications
| Parameter | Value |
|---|---|

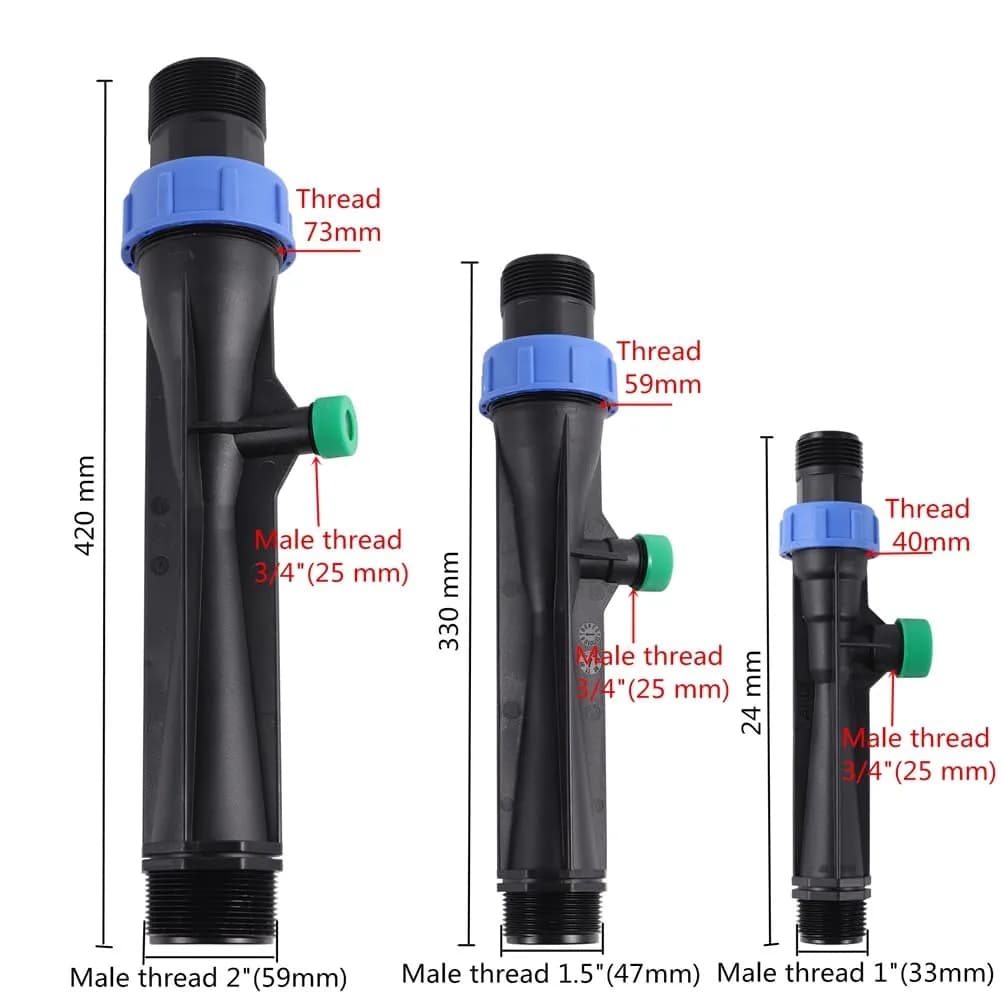

| Connection | 1" (32 mm) / 1-1/2" (50 mm) / 2" (63 mm) |
| Max suction | 300 L/h / 780 L/h / 1200 L/h |
| Max flow | 8 m³/h / 15 m³/h / 20 m³/h |
| Max pressure | 8 bar |
