Fertigation Equipment

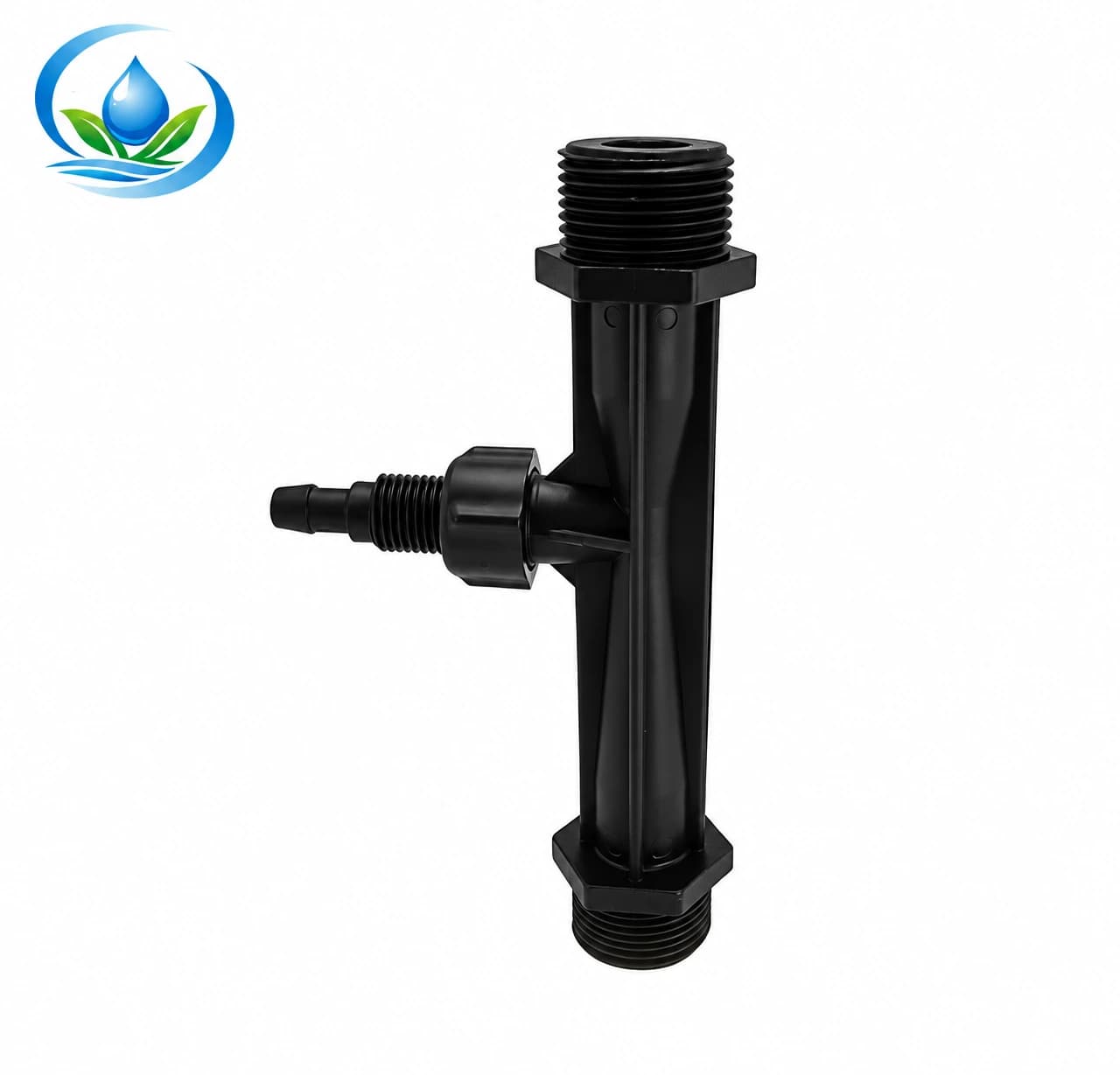

A fertigation unit feeds a prepared nutrient solution into a controlled irrigation stream. This diagram shelf groups injector and dosing components; a Venturi fertilizer injector needs the specified pressure difference, while a driven dosing pump has different power and calibration needs.

Confirm source-water flow, injection ratio or rate, chemical compatibility and connection sizes. Plan isolation and suitable backflow protection before operation. Check each listing for included bypass parts, suction accessories and tanks instead of assuming a complete unit.

Where and when to use it

A fertigation unit in a diagram adds a measured soluble nutrient stream to a compatible irrigation line. This route currently points to injector-related components, including Venturi options, not a complete fertigation skid. A crop block needs a nutrition schedule, measured zone flow, clean water and source protection before an injector can be chosen responsibly.

How it works

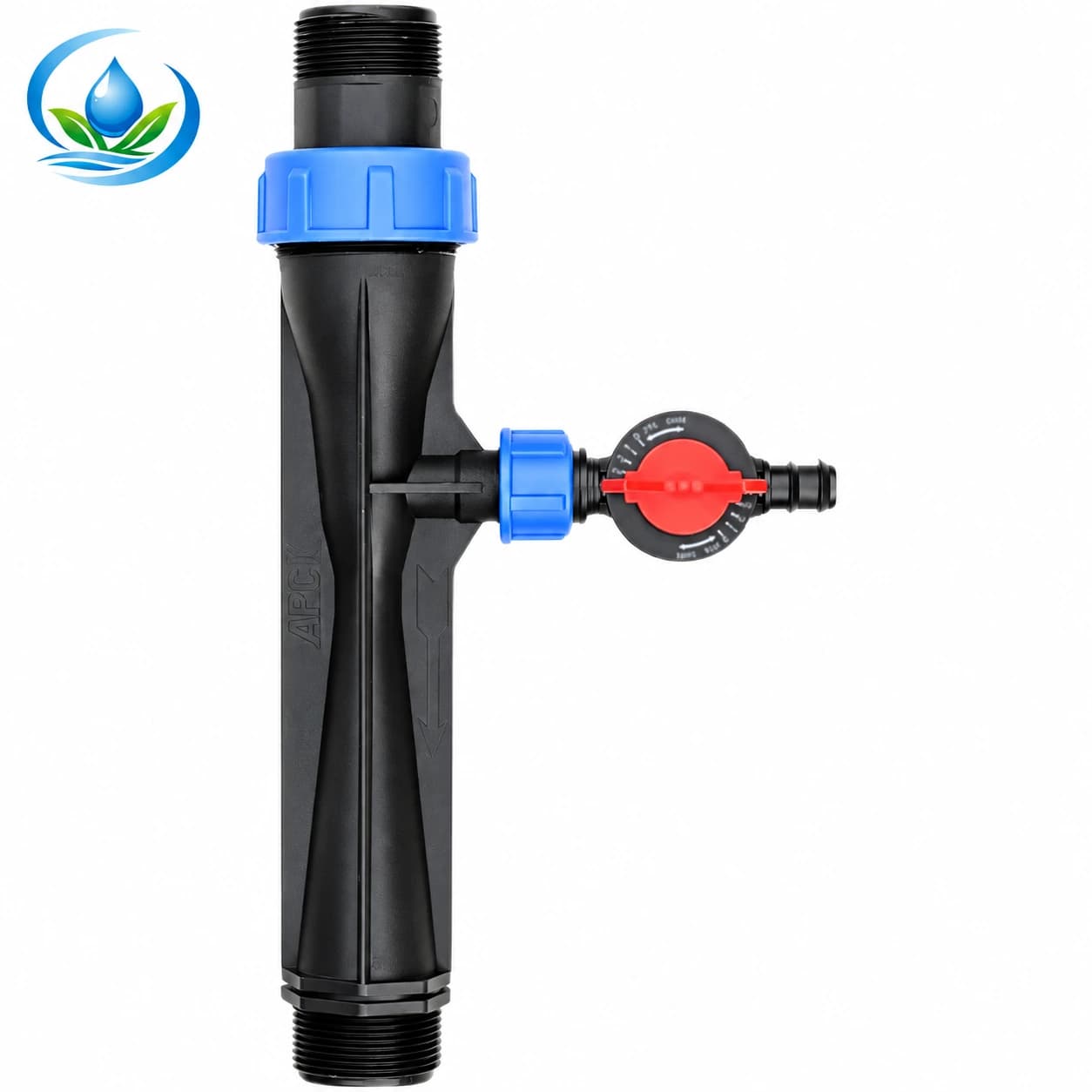

A Venturi fertilizer injector uses a pressure differential to draw stock solution; other units may use a powered metering pump. Actual nutrient concentration at the crop depends on injection rate, stock concentration, mixing and line travel time. Injection must stop if required water flow is lost. Backflow prevention keeps the chemical path from contaminating the source.

A fertilizer injection system needs a measured injection range, compatible wetted parts and a way to stop dosing when irrigation flow stops. The equipment shown in this diagram must be verified against the fertilizer, water source and local protection requirements.

How to plan and install it

1. Identify fertilizer formulation and target dose with a crop nutrition plan.
2. Measure zone flow and pressure and select the injector's operating range.

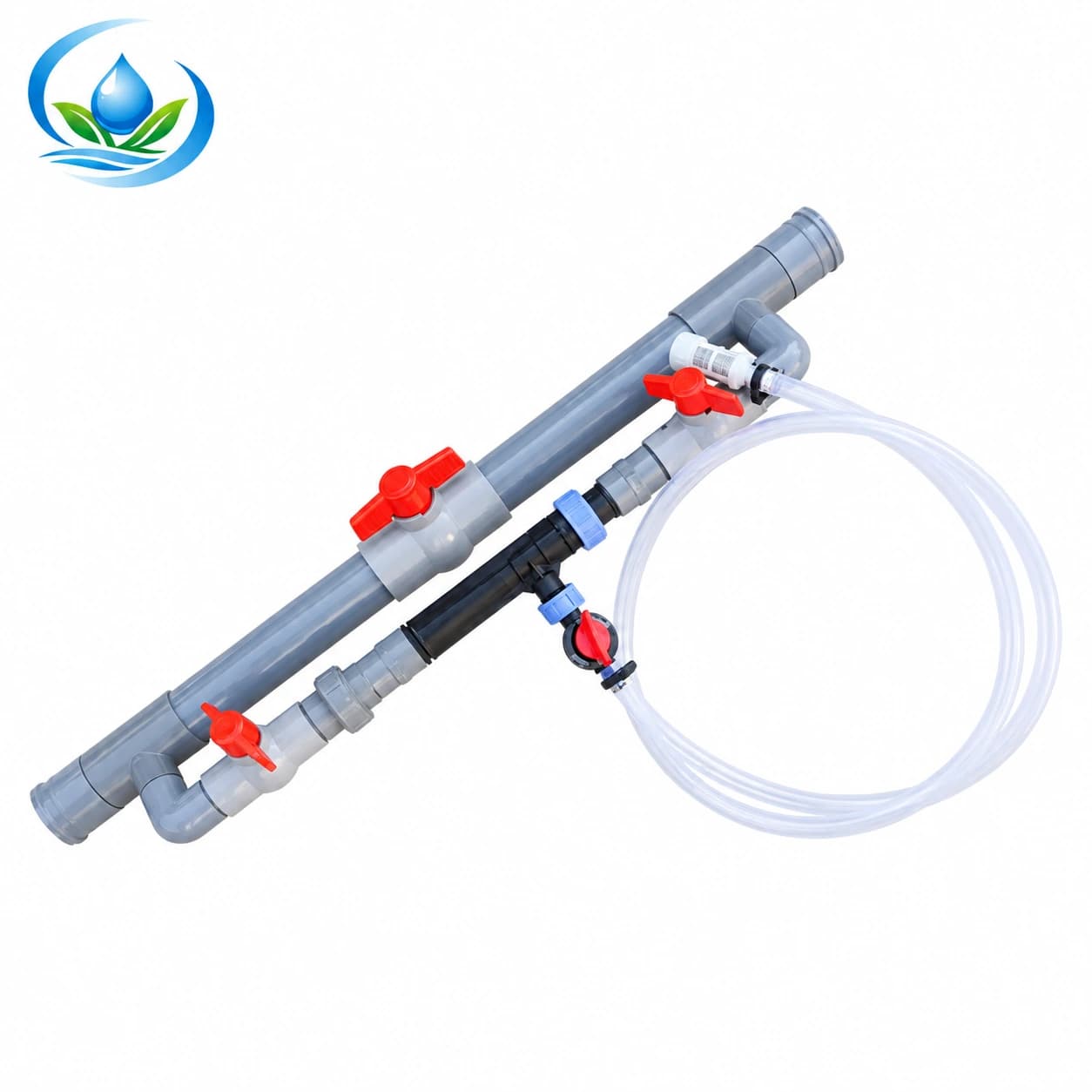

3. Install the approved bypass, isolation, backflow and interlock devices for the site.
4. Calibrate with a measured stock volume, verify downstream delivery and flush with clean water.

Operation and maintenance

Keep a log of stock concentration, injection duration and treated zones. Inspect suction tubing, seals and strainers for blockage. Recalibrate after changing pressure or valve settings. Follow fertilizer labels and local water-protection rules; do not treat a generic category description as an application recipe.

Common questions

How does a fertilizer injector work?

The device meters a fertilizer solution into moving irrigation water by a pump, pressure-driven mechanism or Venturi suction, depending on its design. Calibrate the delivered amount at the actual operating flow and protect the supply and injection line as required.

Why does a Venturi fertilizer injector stop drawing?

Insufficient pressure differential, blocked suction, empty stock or incorrect valve positions are possible causes; test against the product chart.

Technical reference: UGA Extension, Drip Chemigation. Use the selected product manual and local requirements for final design.
