Click to zoomSKU: G-REFRACTING-MIST-MICRO-SPRINKLER

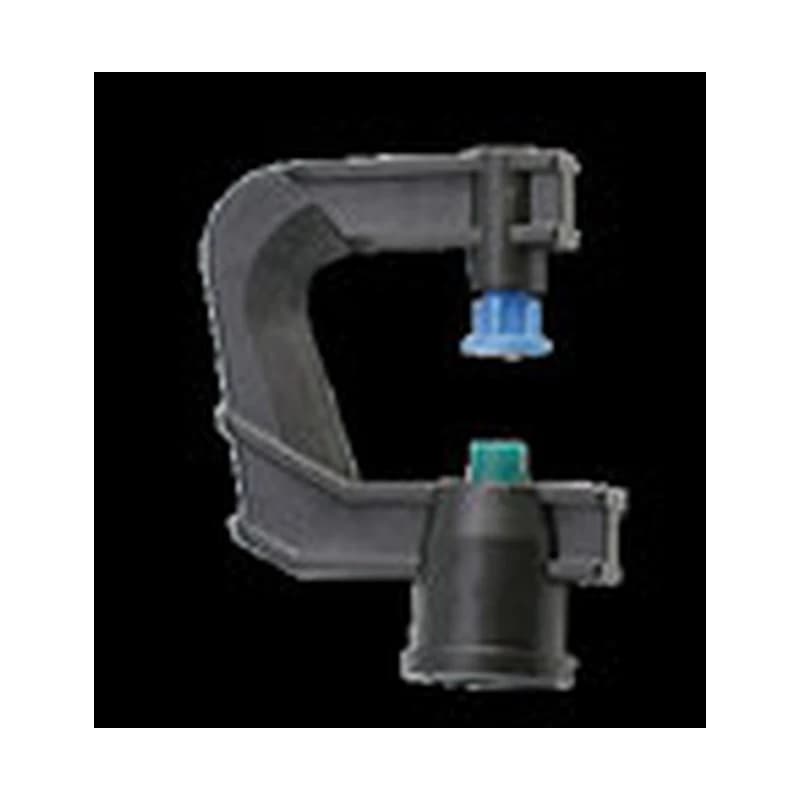

A fixed deflector faces the nozzle inside an open frame, spreading water without a rotating wheel.
$0.23
USD · per selected optionItems subtotal: $0.23 · Shipping calculated at checkout.
A fixed deflector faces the nozzle inside an open frame, spreading water without a rotating wheel. Use this compact mist head around greenhouse benches or closely spaced nursery plants.
Choose a 0.85, 1.2 or 1.4 mm nozzle. The listed working pressure is 2 bar; check the wetting pattern at plant height before setting head spacing.
Measure pressure while the zone is running, flush debris from the supply line and use filtration suited to the outlet. Arrange heads for overlapping coverage where the whole bed needs watering. Observe the soil or growing medium after a watering cycle and adjust run time to avoid runoff.
Inspect the outlet for debris and check connections for leaks. Clean with water and a soft brush so the opening keeps its original shape. Recheck the pattern after moving the head or changing the number of outlets on the zone.
| Parameter | Value |
|---|---|
| Diameter | 0.85-1.4mm |
| Flow Rate | 40-100L/h |
| Working Pressure | 2Bar |
| Spraying Radius | 1m |
Review delivery information and available shipping options before placing your order.
View shipping informationRead the returns process and contact our team if your order needs attention.
Read the returns policySend the model, tubing size and working pressure so our team can help you choose.
Contact product support
