Reducing Compression Coupling for PE Irrigation Pipe

SKU: 702025

Connect two different PE pipe diameters in a straight run with a reducing compression coupling. Check the size at each end before selecting.

Size Range: 25 × 20 mm / 32 × 20 mm / 32 × 25 mm / 40 × 20 mm / 40 × 25 mm / 40 × 32 mm / 50 × 20 mm / 50 × 25 mm / …

Option

H-Compression Fitting

Selected SKU: 702025

$1.55

USD · per selected option

Quantity

Items subtotal: $1.55 · Shipping calculated at checkout.

Delivery information PayPal checkout Product support

About this item

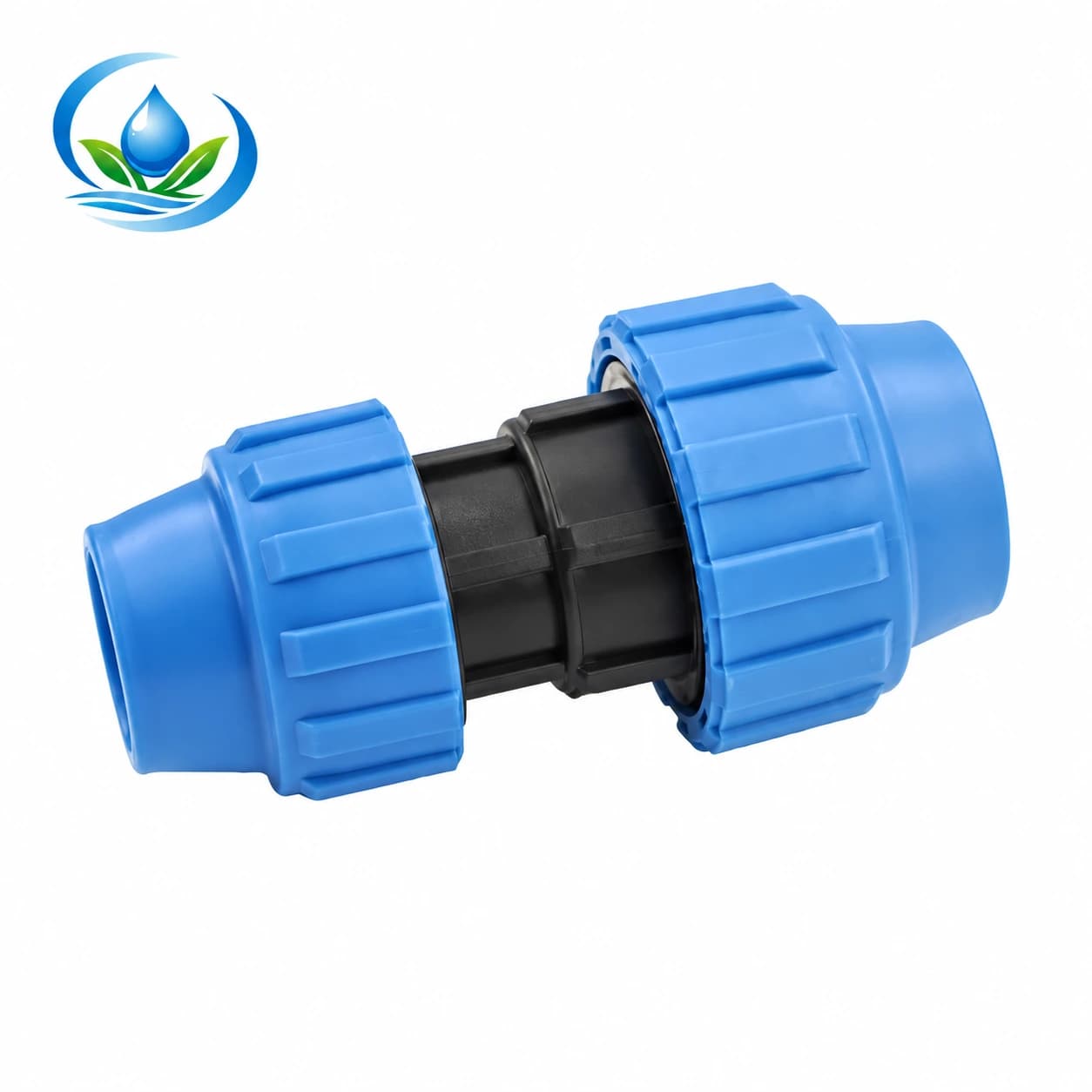

A reducing compression coupling connects two different polyethylene pipe diameters in a straight irrigation run. Its opposing blue nuts have different socket sizes, joined by a stepped black body. This shape is useful where a supply line transitions to a smaller distribution pipe without adding a side branch or a threaded connection.

Check both pipe diameters

Measure the outside diameter of each pipe separately and compare the pair with the selected option. Do not assume that two pipes with similar-looking walls have the same connection size. Place the larger and smaller ends according to the intended route, leaving enough space for both nuts and keeping each pipe straight at insertion.

Match the pipe before assembly

Compression fitting sizes refer to the pipe connection diameter. Check the actual outside diameter, pipe material and wall specification rather than relying on an inside-diameter measurement. The selected option must match every connected pipe. Confirm the permitted pressure and temperature for your complete system before installation; the weakest component determines the usable operating limit.

Prepare and test the connection

Turn off the water and release pressure before working on the line. Cut the pipe square, remove loose debris and check the end for scratches or distortion. Follow the fitting assembly instructions for insertion depth, any required pipe support and tightening. Keep the sealing surfaces clean and avoid forcing a misaligned pipe into the socket. Bring the zone up to pressure gradually, inspect every connection and resolve any leakage before covering the pipe.

Choose the right fitting shape

Check the route and number of outlets as well as the size. Leave the joint accessible during the initial test and provide space for later inspection. A correctly selected fitting should suit the planned layout without twisting the pipe or putting unnecessary strain on the connection.

Different socket sizes join two pipe diameters
Straight transition without a branch
Blue compression nuts with a black fitting body
Select connections by pipe outside diameter

Applications

Agricultural irrigation

Available options and dimensions

Compare sizes, connections and specifications to choose the right option for your system.

Scroll sideways to compare all specifications.

Option / Size	SKU	Specifications
25 × 20 mm	702025	Connection size 25 × 20 mm
32 × 20 mm	702031	Connection size 32 × 20 mm
32 × 25 mm	702032	Connection size 32 × 25 mm
40 × 20 mm	702038	Connection size 40 × 20 mm
40 × 25 mm	702039	Connection size 40 × 25 mm
40 × 32 mm	702040	Connection size 40 × 32 mm
50 × 20 mm	702047	Connection size 50 × 20 mm
50 × 25 mm	702048	Connection size 50 × 25 mm
50 × 32 mm	702049	Connection size 50 × 32 mm
50 × 40 mm	702050	Connection size 50 × 40 mm
63 × 20 mm	702059	Connection size 63 × 20 mm
63 × 25 mm	702060	Connection size 63 × 25 mm
63 × 32 mm	702061	Connection size 63 × 32 mm
63 × 40 mm	702062	Connection size 63 × 40 mm
63 × 50 mm	702063	Connection size 63 × 50 mm
75 × 40 mm	702073	Connection size 75 × 40 mm
75 × 50 mm	702074	Connection size 75 × 50 mm
75 × 63 mm	702075	Connection size 75 × 63 mm
90 × 63 mm	702089	Connection size 90 × 63 mm
90 × 75 mm	702090	Connection size 90 × 75 mm
110 × 75 mm	702091	Connection size 110 × 75 mm
110 × 90 mm	702110	Connection size 110 × 90 mm
