0.85 mm Stake-Mount Rotary Micro Sprinkler – 40 L/h

0.85 mm Stake-Mount Rotary Micro Sprinkler

This black-rotor head is intended for standing irrigation layouts. A suitable stake places the head above the growing surface and makes it accessible when beds or containers need regular rearrangement.

Match the nozzle to your zone

The 0.85 mm nozzle delivers a rated 40 L/h at 2 bar, with a listed spray radius of 3 m. The smallest nozzle in this range provides the lowest rated flow. It is useful when each outlet must make a modest contribution to the total zone demand.

Radius describes the reach from the head, rather than a guaranteed spacing between sprinklers. Installation height, pressure, foliage and wind affect the wetted area. Check overlap in the installed layout before setting the watering schedule.

Position and connect the head

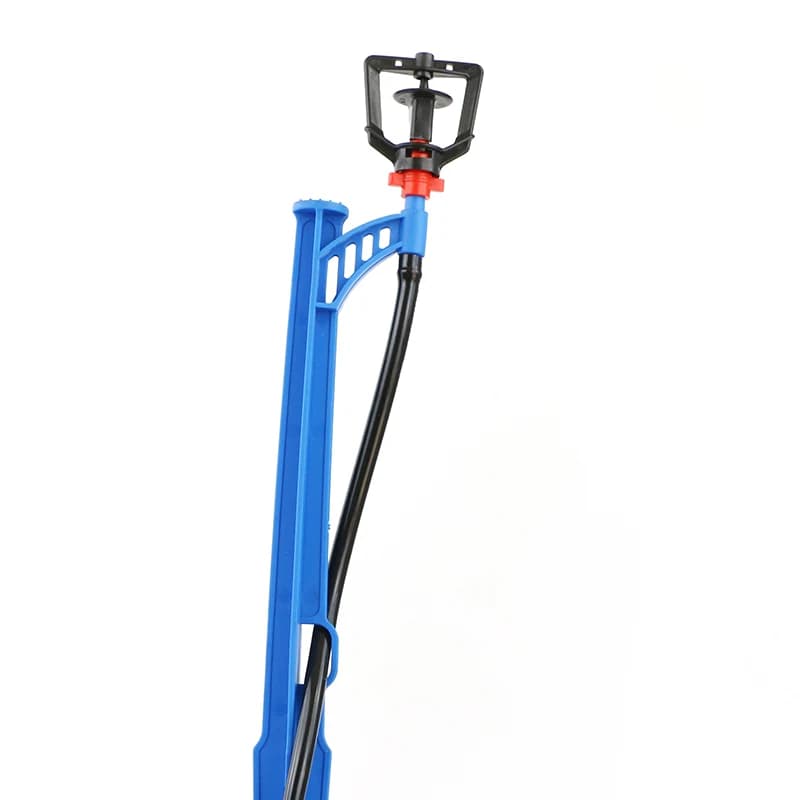

Place the support firmly in the growing area and keep the head upright. Check that nearby stems, leaves and support wires do not block the rotor or intercept the spray.

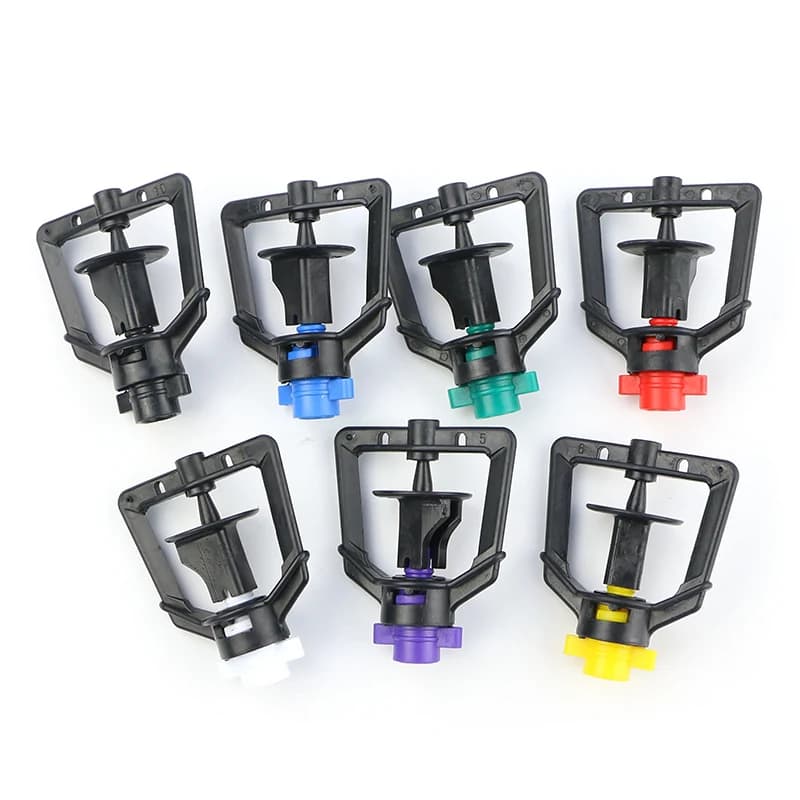

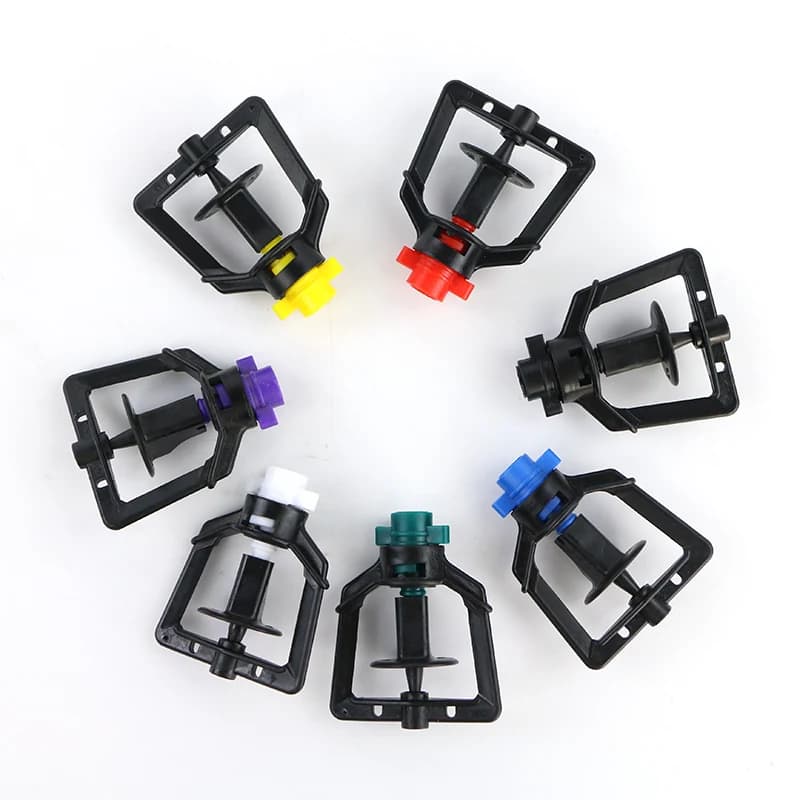

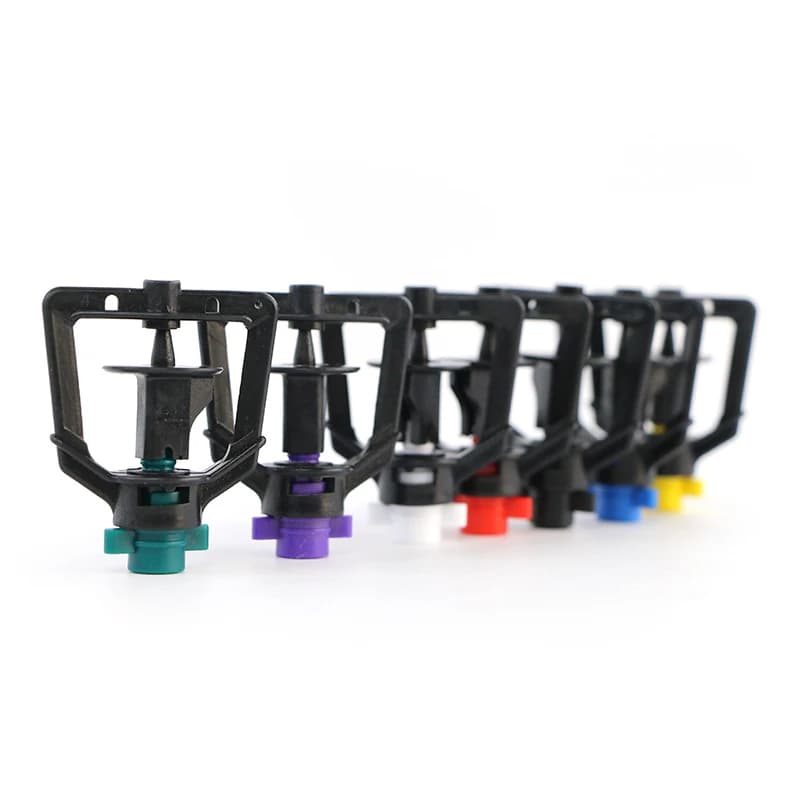

The gallery includes examples of this head form with different nozzle colours and mounting arrangements. Select the nozzle size shown in the product details and confirm the supplied parts when ordering; tubing, stakes, weights and valves depend on the chosen arrangement.

Keep the water path clear

Flush the supply line before connecting the sprinkler and use filtration appropriate to the water source and nozzle opening. Inspect the outlet and spray pattern during routine irrigation checks. If output changes, check pressure, blocked passages and line condition before altering the watering time.
