1.4 mm Hanging Rotary Micro Sprinkler – 100 L/h

1.4 mm Hanging Rotary Micro Sprinkler

This green-rotor head is intended for hanging irrigation layouts above beds, benches or nursery plants. Position the overhead line so the spray can reach the growing area without the head touching foliage.

Match the nozzle to your zone

The 1.4 mm nozzle delivers a rated 100 L/h at 2 bar, with a listed spray radius of 4 m. At 100 L/h, ten heads require a combined rated flow of 1,000 L/h at the stated pressure. This makes zone demand straightforward to estimate before selecting pipework and control equipment.

Radius describes the reach from the head, rather than a guaranteed spacing between sprinklers. Installation height, pressure, foliage and wind affect the wetted area. Check overlap in the installed layout before setting the watering schedule.

Position and connect the head

Support the overhead tubing and allow the sprinkler to hang in its working position. Leave clearance around the rotor, then test the pattern at the actual crop height before fixing the final spacing.

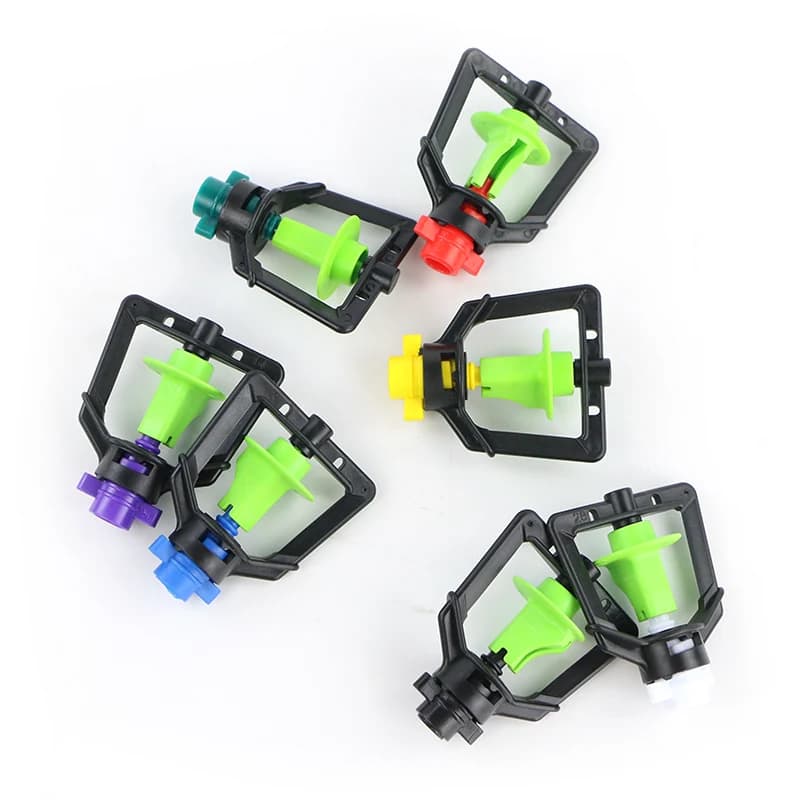

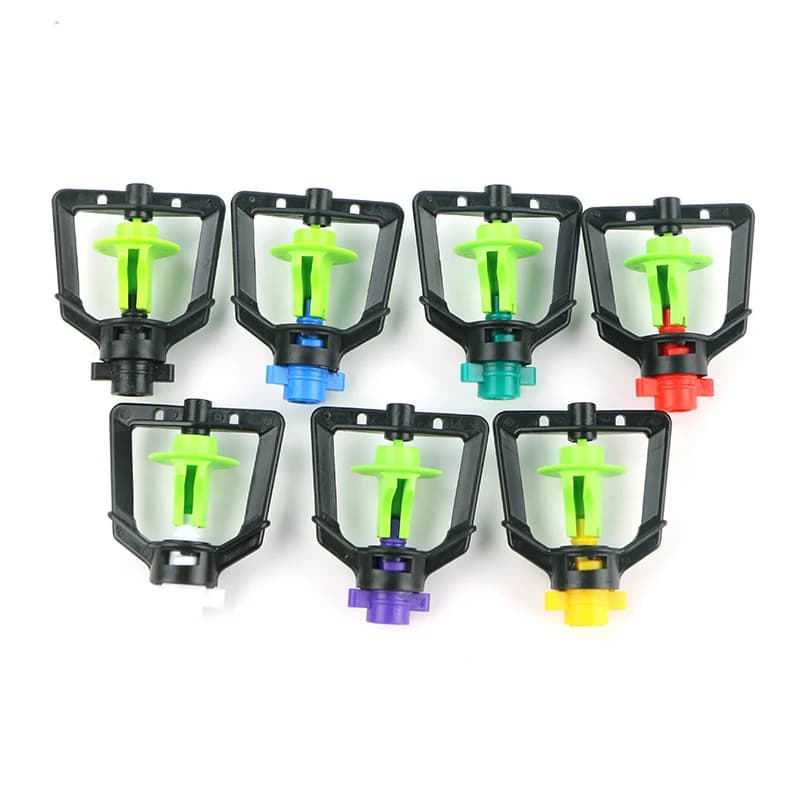

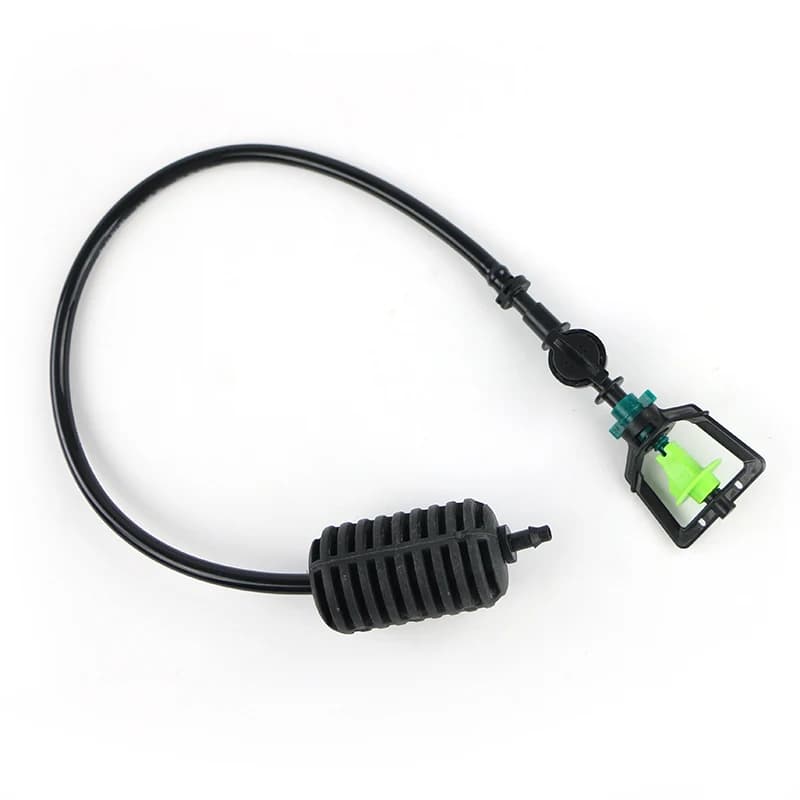

The gallery includes examples of this head form with different nozzle colours and mounting arrangements. Select the nozzle size shown in the product details and confirm the supplied parts when ordering; tubing, stakes, weights and valves depend on the chosen arrangement.

Keep the water path clear

Flush the supply line before connecting the sprinkler and use filtration appropriate to the water source and nozzle opening. Inspect the outlet and spray pattern during routine irrigation checks. If output changes, check pressure, blocked passages and line condition before altering the watering time.
