Click to zoomSKU: MN-SPRINKLER

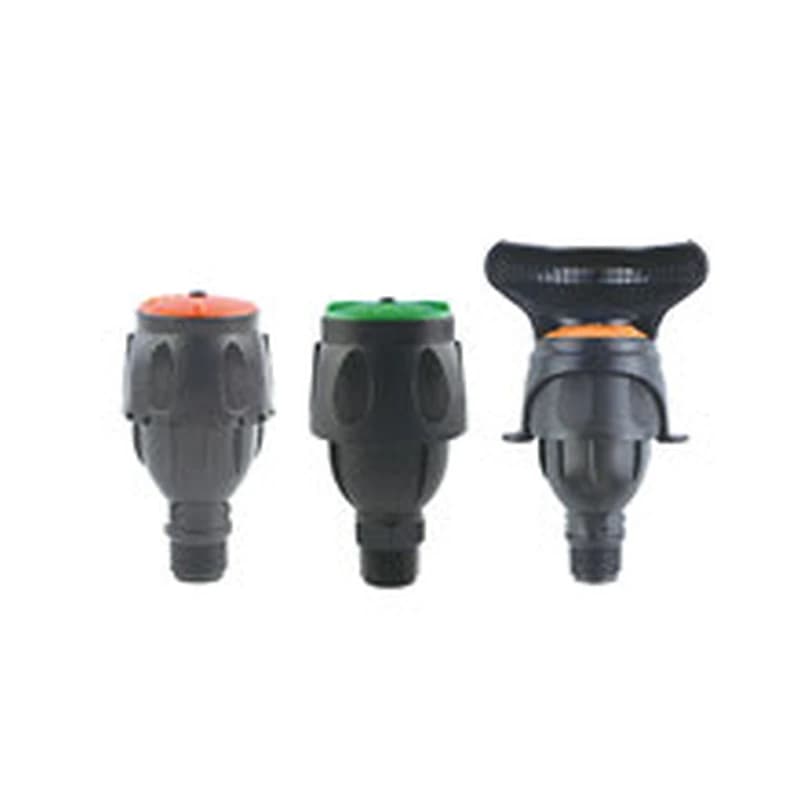

A compact rotary head distributes water around orchard trees and larger nursery planting.
$5.35
USD · per selected optionItems subtotal: $5.35 · Shipping calculated at checkout.
A compact rotary head distributes water around orchard trees and larger nursery planting. Two inlet options let the head connect to a suitable threaded riser.
Choose a 1/2-inch or 3/4-inch male-thread inlet. The listed working range is 2-3 bar. These inlet options have different water demands, so confirm the supplied nozzle and discharge when sizing a zone.
Measure pressure while the zone is running, flush debris from the supply line and use filtration suited to the outlet. Arrange heads for overlapping coverage where the whole bed needs watering. Observe the soil or growing medium after a watering cycle and adjust run time to avoid runoff.
Inspect the outlet for debris and check connections for leaks. Clean with water and a soft brush so the opening keeps its original shape. Recheck the pattern after moving the head or changing the number of outlets on the zone.
| Parameter | Value |
|---|---|
| Diameter | M1/2'' / M3/4'' |
| Flow Rate | 550-1100L/h |
| Working Pressure | 2-3Bar |
| Spraying Radius | 7-9m |
