3 mm Handheld Hole Punch for Drip Irrigation

This handheld irrigation hole punch prepares a nominal 3 mm opening for a compatible emitter or small takeoff connection. Its curved red handle provides a compact grip, while the short metal working tip concentrates the manual force at the intended outlet position. It is a practical tool for adding individual watering points along a compatible soft tubing run.

A compact tool for outlet preparation

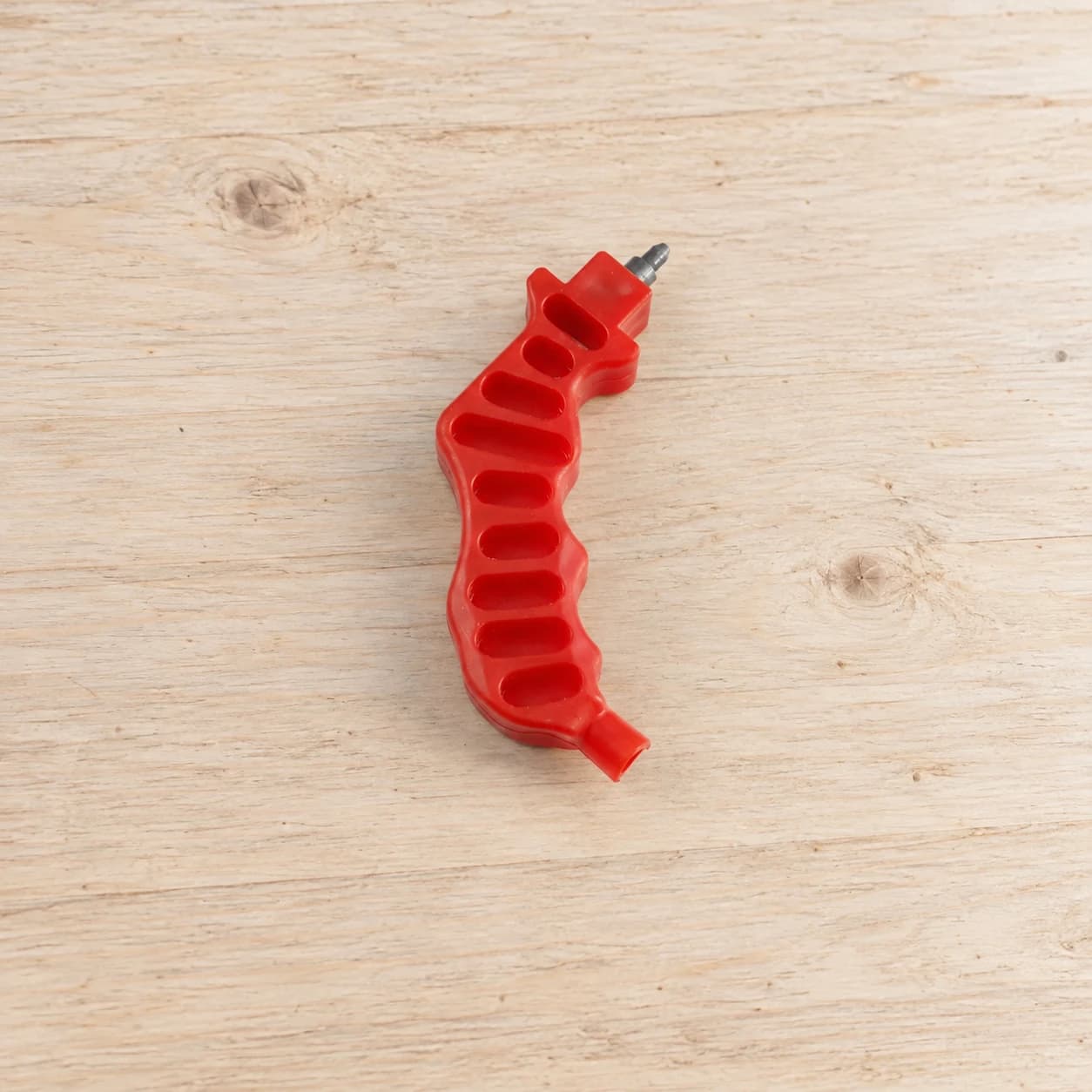

The recessed sections follow the curve of the handle, and the working tip projects from its front end. This detail view shows the tool itself; confirm the tubing and fitting requirements before making a hole.

Match the opening to the fitting

The 3 mm size describes the intended punch opening, not the outside diameter of the supply tube. Check the emitter or takeoff manufacturer鈥檚 required hole diameter and compatible pipe material. A larger barb does not automatically require a hole of the same diameter, because the connection may depend on an interference fit. Test the chosen combination on spare tubing before preparing a full line.

Prepare and check each outlet

Turn off the water and relieve line pressure. Mark the watering position, support the tubing and bring the tip squarely to the surface. Make the opening without twisting the pipe out of position, then check for loose material before inserting the compatible fitting. Avoid placing an outlet at a kink, damaged section or an existing connection.

Restore water gradually and inspect the new joint under normal operating conditions. Store the punch with its tip protected from accidental contact. The selected item is the punch; tubing, emitters and takeoff fittings are separate components.
