Lever-Action Hole Punch for Soft Irrigation Tubing

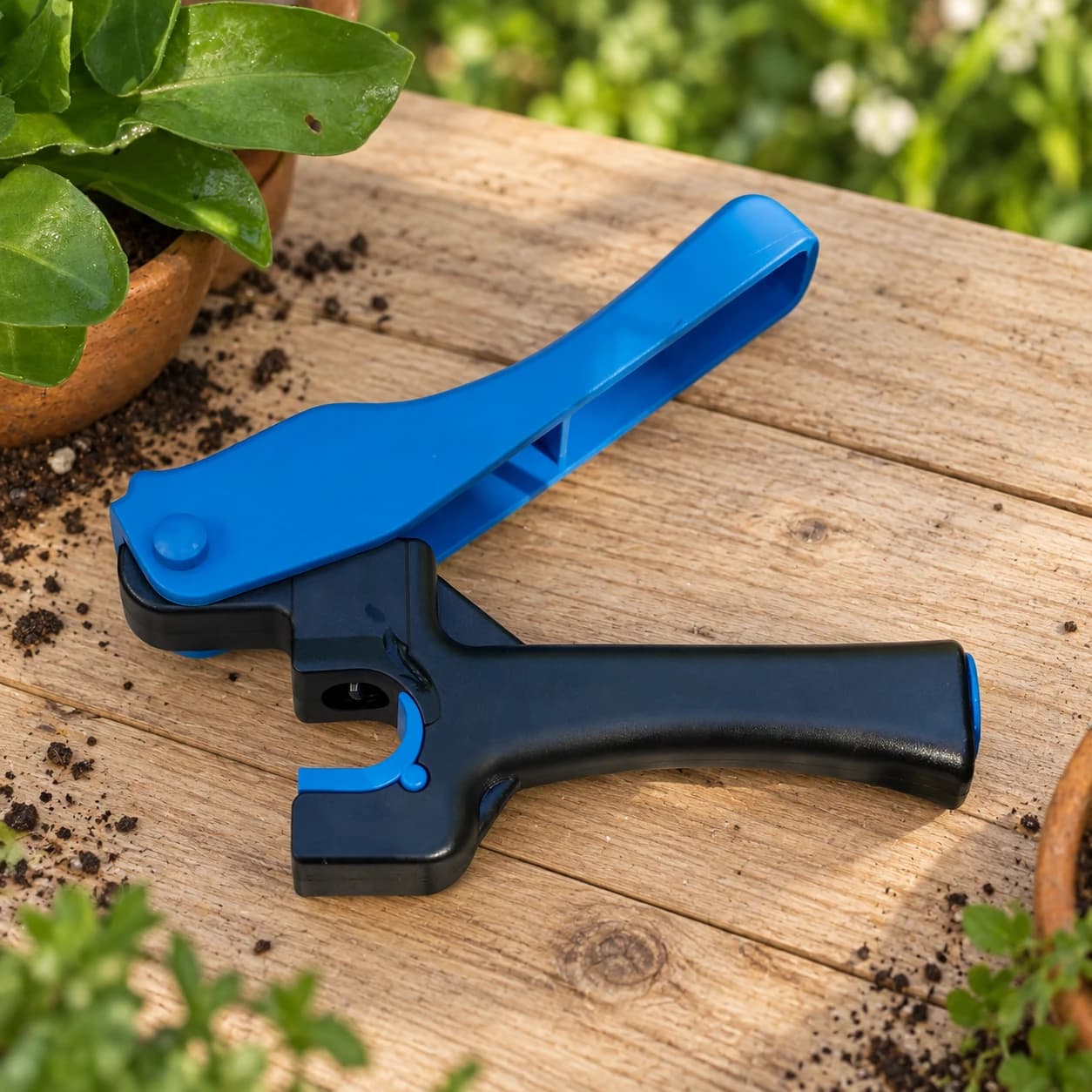

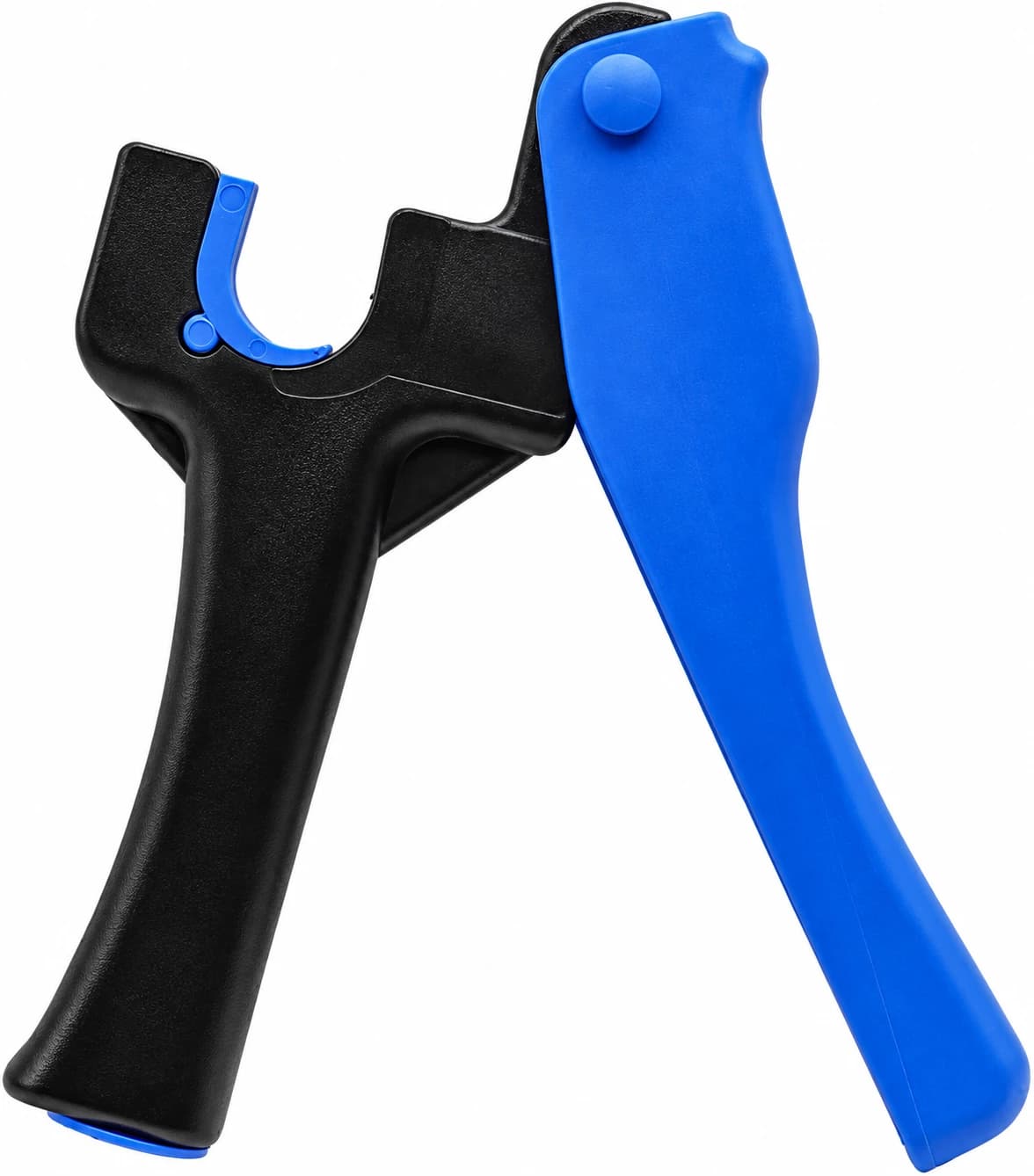

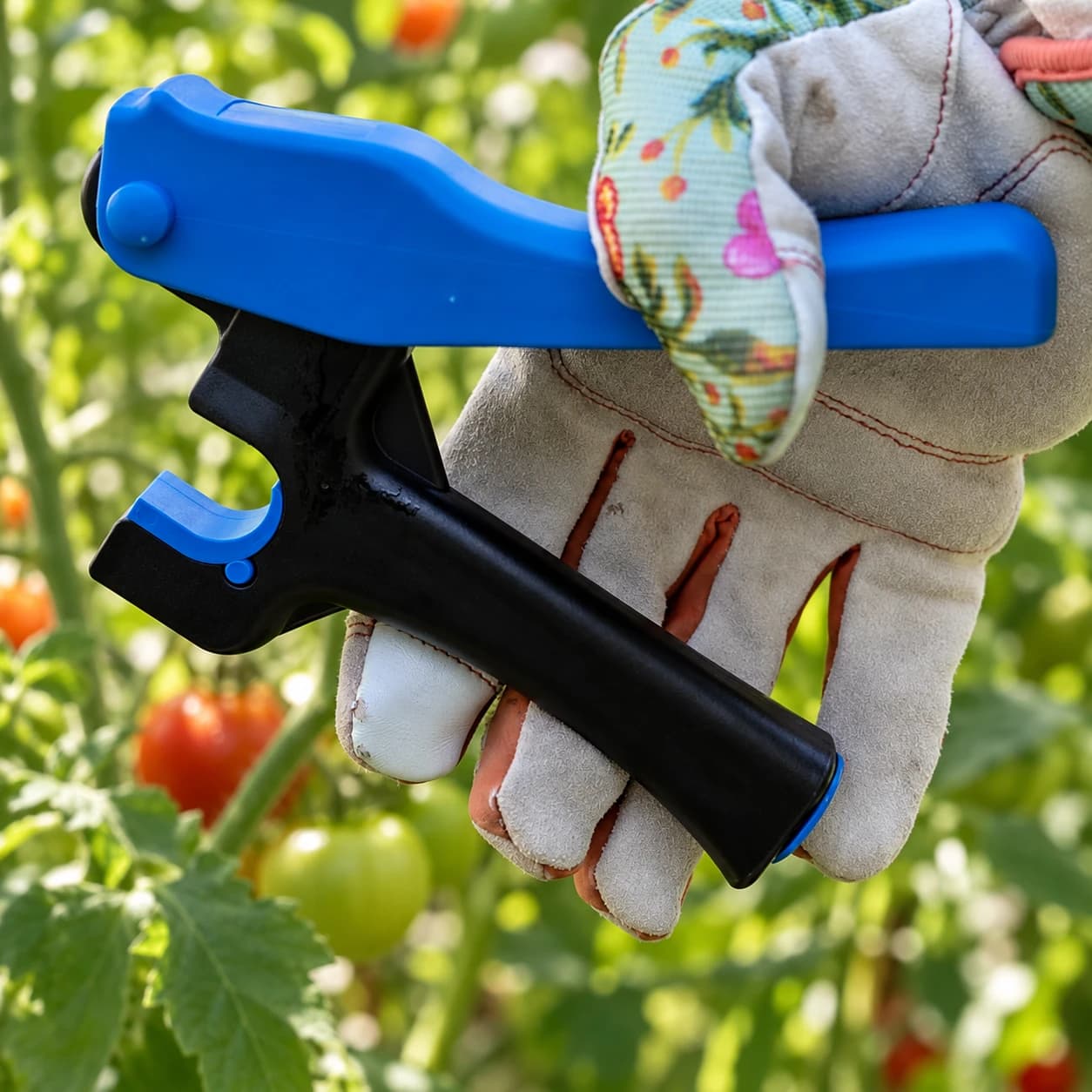

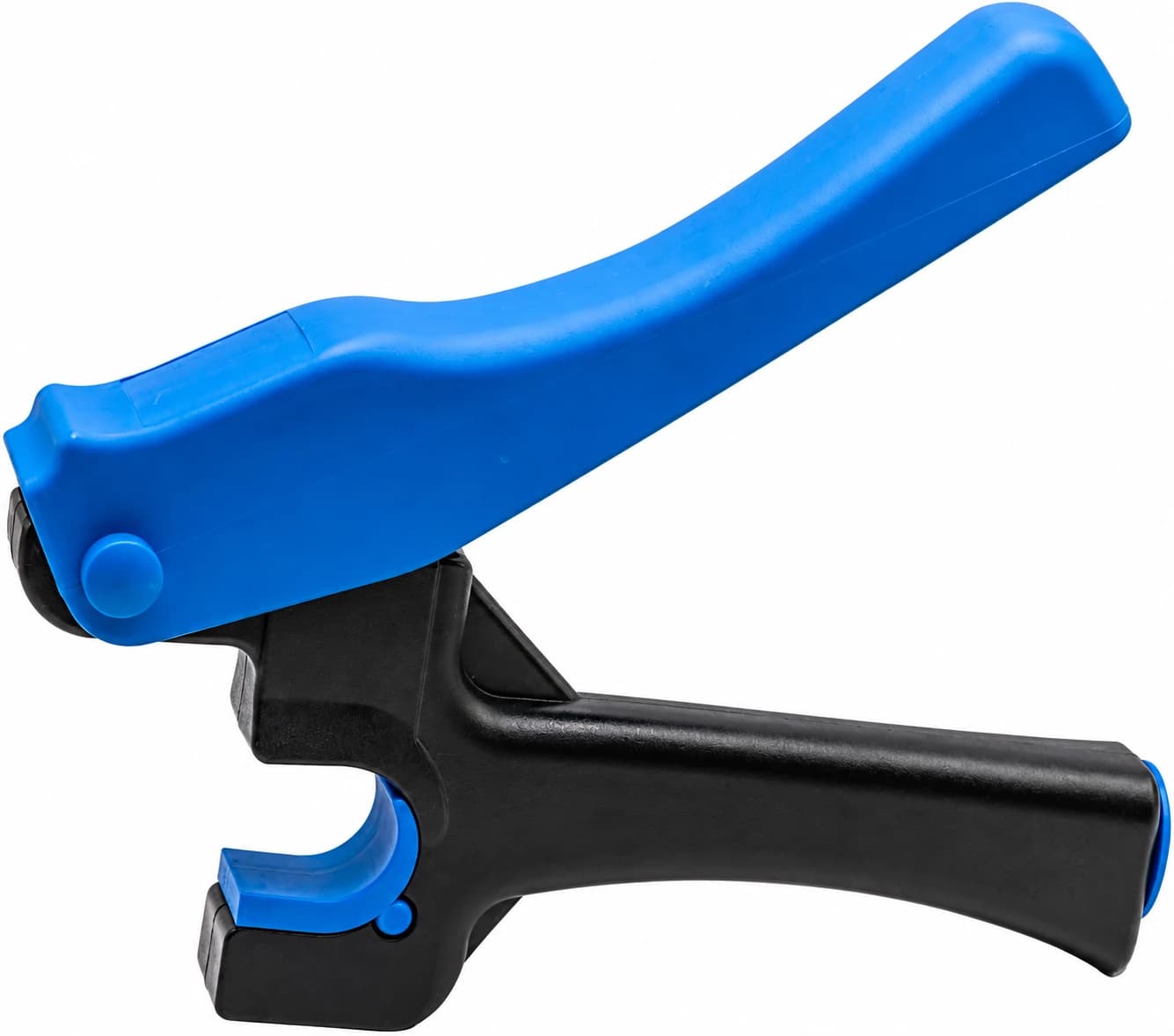

The shaped cradle supports round tubing beneath the cutting point, while the separate blue lever provides the squeeze action. This arrangement helps the installer hold a consistent outlet position while working down a lateral. The visible support insert is part of the tube-locating area, rather than a second hole-size option.

Select the opening for your fitting

The current option is described as 3–4 mm, but the included cutting tip must be confirmed for the fitting you plan to install. This wording does not establish two cutters or an adjustable mechanism. Check the required opening diameter and ensure the tubing fits the support cradle without being forced. No rigid PVC compatibility is established.

Prepare and make the opening

Switch off the water, drain the tubing and mark outlet locations. Place the tube in the cradle, align the mark with the cutting point and squeeze the lever steadily. Release the handle fully before withdrawing the tube. Try a few openings in a spare piece first, checking that the barb seats firmly without tearing the wall.

Finish the connection and care for the tool

Remove loose cuttings and flush the line before installing emitters. Keep the outlets clear of joints and damaged sections, where the wall may already be stressed. Restore pressure gradually and inspect each new connection. Clean grit from the support area after use; a dirty cradle can mark tubing or make it harder to hold the intended position.
