15 mm Layflat Hose Punch for Irrigation Takeoffs

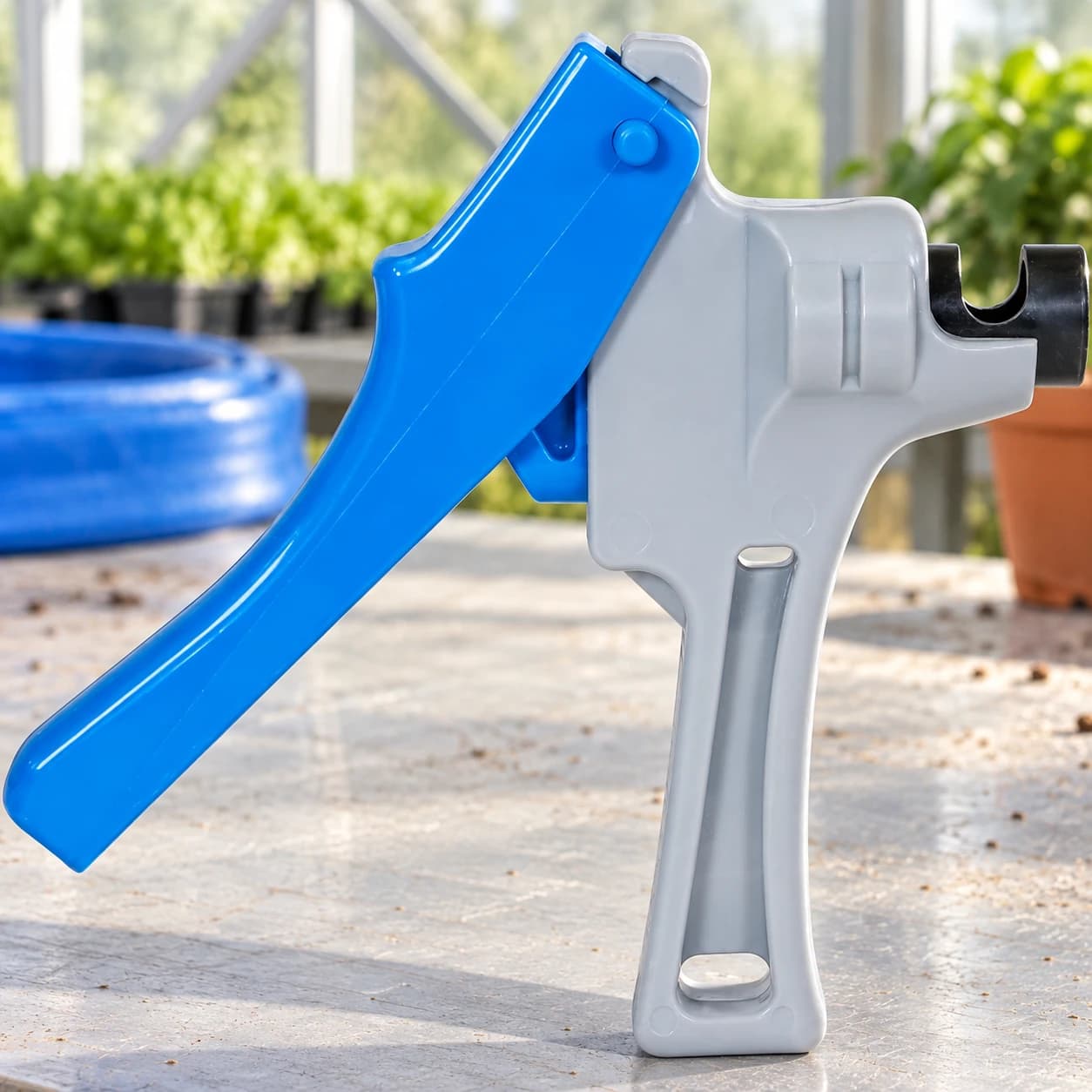

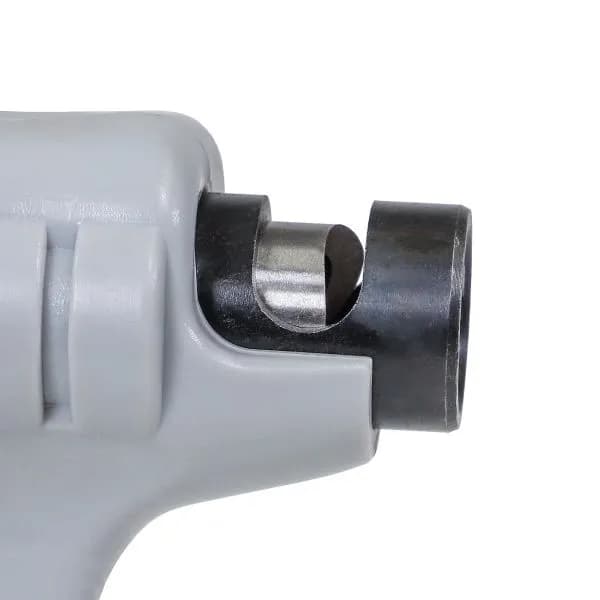

This compact gray-and-blue tool prepares branch positions along a layflat irrigation supply hose. The guide groove locates the hose at the cutting area, and the blue lever supplies the hand-operated cutting action. It suits planned takeoffs for drip laterals where each branch needs a correctly sized opening in the supply hose wall.

Select the opening for your fitting

The 15 mm measurement is the opening size. Select a starter connector or mini-valve that explicitly requires a 15 mm hole and is suitable for the hose construction. A larger or smaller punch can change how the connector seals. Hose width and connection outlet size are different measurements and should be checked separately.

Prepare and make the opening

Lay the depressurized hose flat and mark the branch spacing before cutting. Keep the intended wall in the guide groove, away from folds, seams and damaged areas. Squeeze the lever steadily, release it and remove the hose. Inspect the first opening and test the intended fitting on spare hose before preparing a complete run.

Finish the connection and care for the tool

Remove cut material and flush the supply line. Insert the connector with the correct washer or seal according to its own instructions, then connect the lateral without pulling sideways on the takeoff. Restore water gradually and inspect around every opening. Wipe the guide clean after use so grit does not interfere with positioning the next hose section.
