Push-Button Hole Punch for Drip Irrigation Tubing

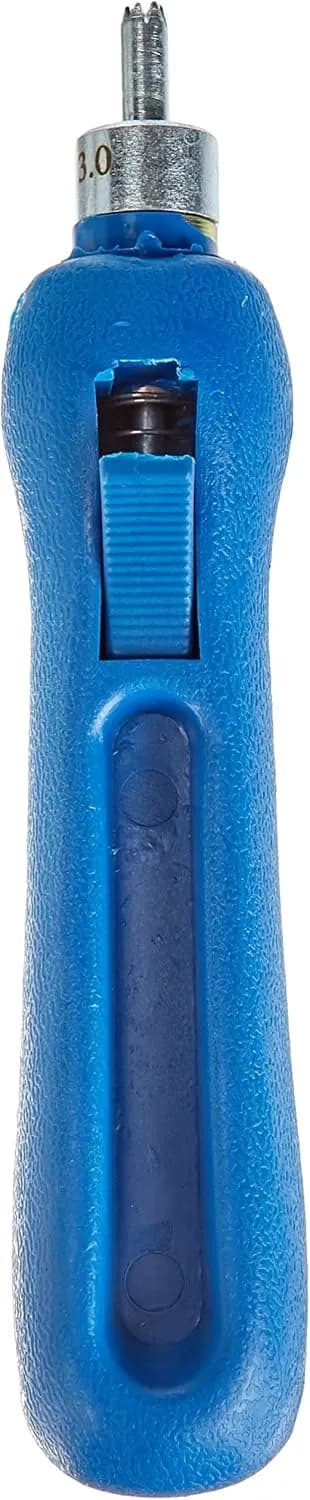

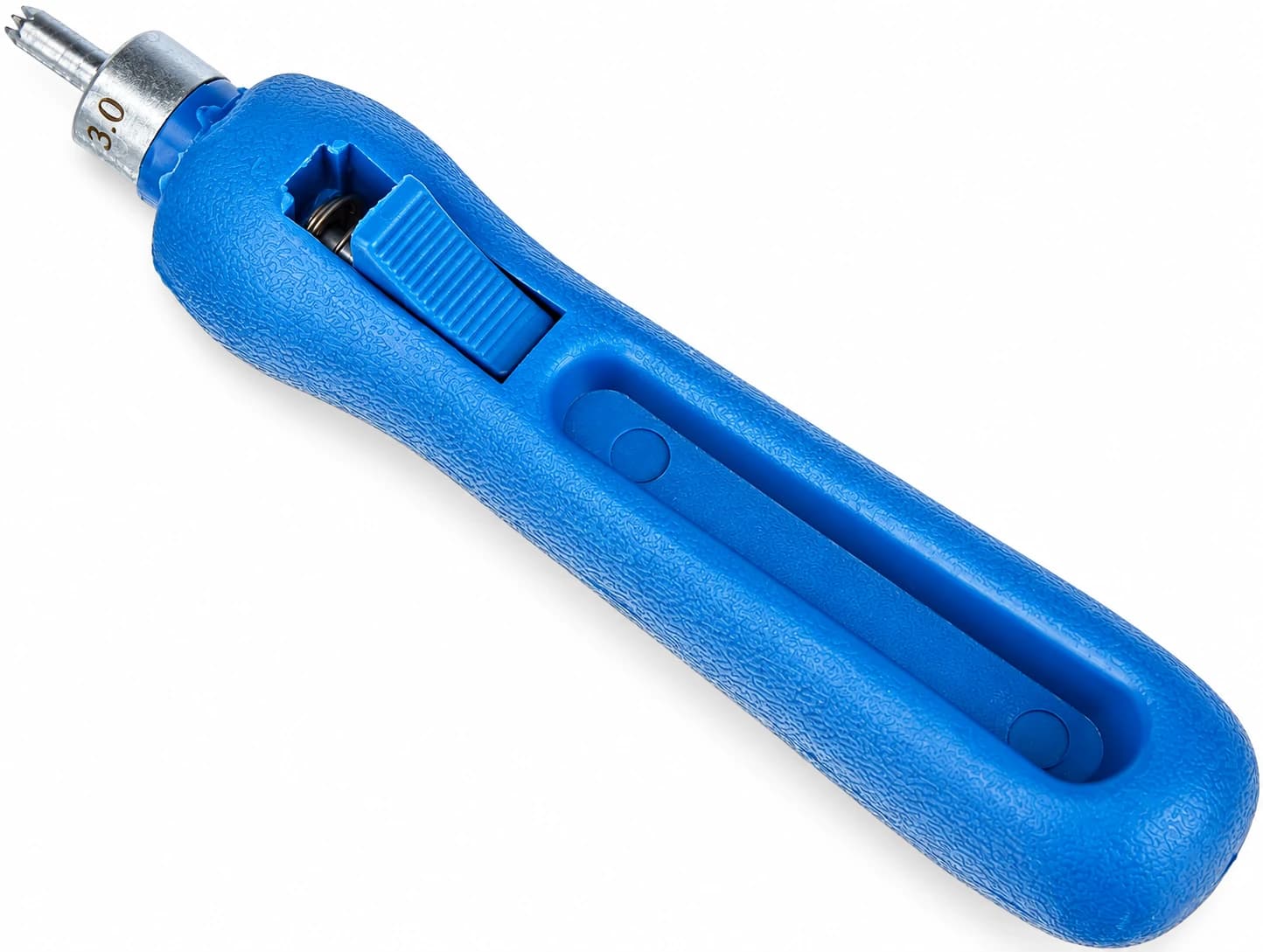

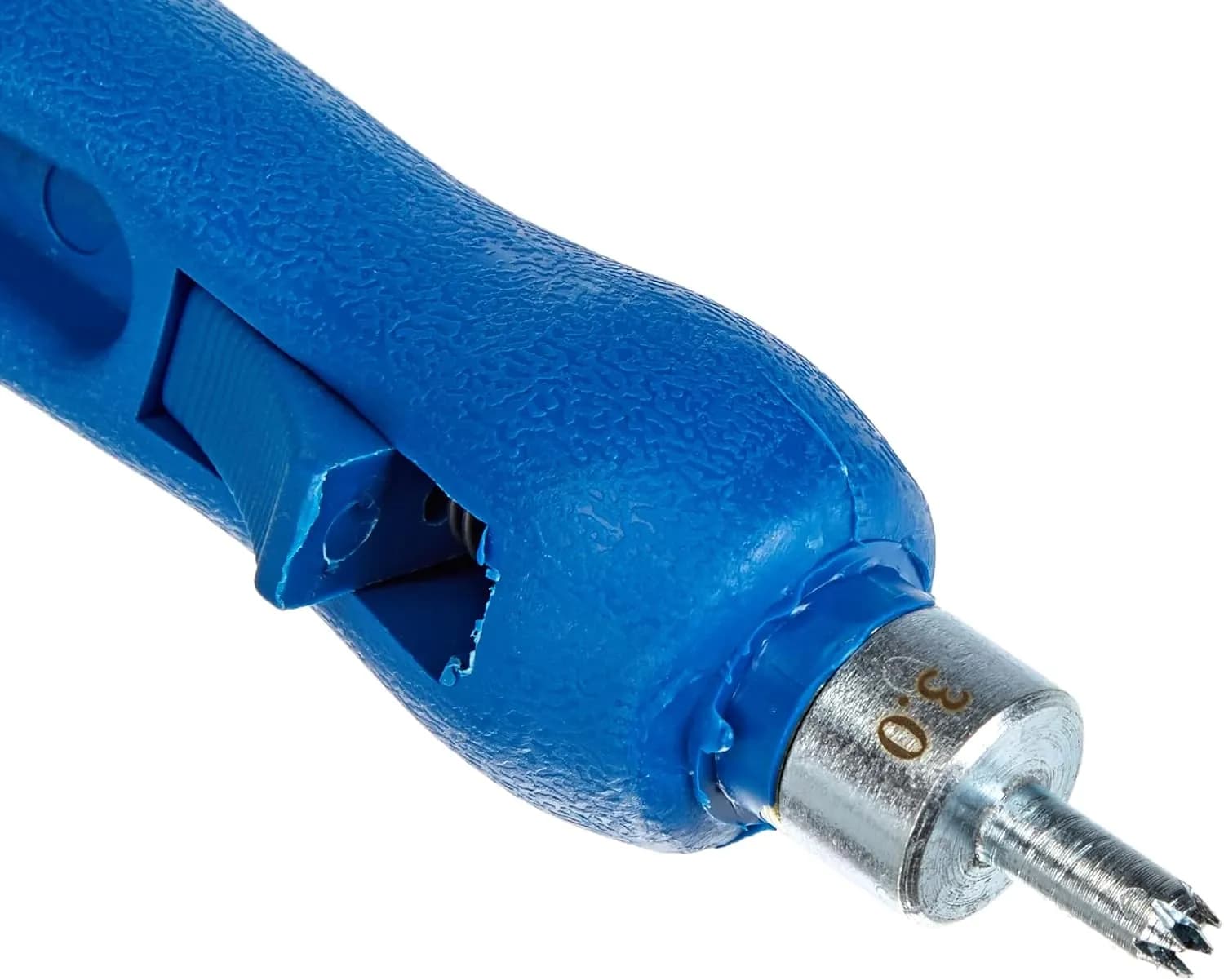

The elongated blue handle gives this manual punch a different working format from squeeze pliers. Its metal cutting end approaches the tubing directly, and the visible button provides a clearing control for the cutting tip. It is intended for preparing outlet locations in compatible irrigation tubing before fitting emitters or takeoff connections.

Select the opening for your fitting

Choose the punch by the opening required by the fitting. The supplied tip diameter must be confirmed before purchase; this page does not establish an adjustable range or a set of interchangeable tips. Tube diameter, barb size and cutting diameter are separate measurements. A larger inlet cannot be made suitable simply by pushing it into a smaller opening.

Prepare and make the opening

Drain the line and place the tube on a stable support. Mark the intended outlet, align the cutting end squarely and press with controlled force. Avoid pushing through both tube walls. Withdraw the tool before using the clearing control and keep hands away from the cutting edge. Check that removed material has left the tip before the next opening.

Finish the connection and care for the tool

Try the intended fitting in a spare section first, then inspect the installed outlet for splitting or distortion. Remove debris and flush the lateral before putting it back into service. A pressure check after assembly confirms the seal. Wipe the metal end dry after use and keep soil out of the button area so the tool stays ready for the next installation.
